Osen Spider Aerial Work Platform | Narrow Space Electric Spider Lift
OSEN Spider Lift is lightweight tracked aerial work platform. Working height 10m-17.7m, narrow chassis for indoor & outdoor use. Contact us for price!
- Description
Spider Lift Operation Demonstration
Watch our Osen tracked spider aerial work platform in action. This narrow access electric spider lift can easily pass through standard doorways for indoor and outdoor high-altitudew
Product Overview

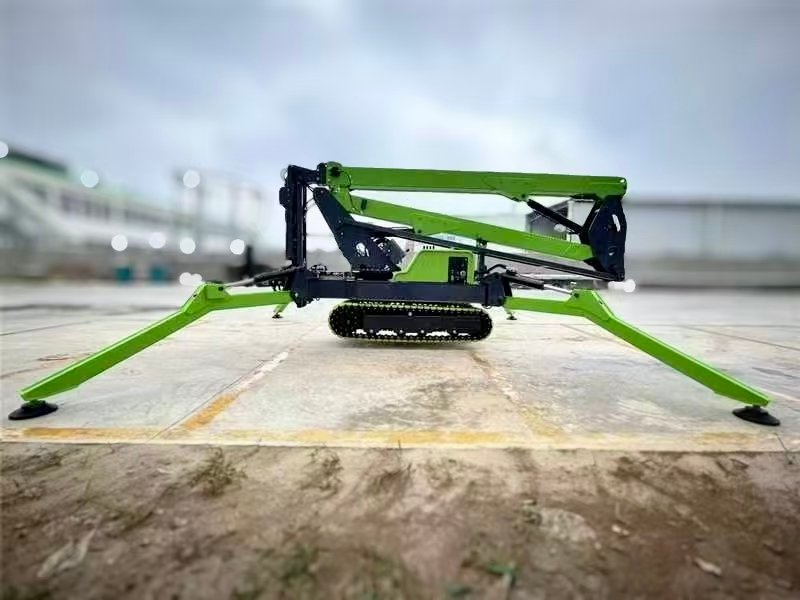

Osen self-developed spider lift is upgraded from traditional trailer-mounted aerial lifts, specially engineered for complex and confined-space aerial work. It covers working heights from 10m to 21m with a rated load capacity of 200kg for 2 operators. Thanks to lightweight construction, the 14m model weighs only 1900kg. Compact body design with minimum retracted width of 750mm allows easy passage through narrow doorways, convenient relocation between job sites, and flexible operation both indoors and outdoors. Powered by lithium battery, this spider platform runs silently with zero exhaust emissions, ideal for shopping malls, heritage buildings, factories and venues with strict noise & environmental requirements. Versatile for various working conditions. Feel free to contact us for solutions and quotations.
Key Features
✅ Narrow chassis: minimum width 750mm, pass through narrow doors and corridors easily ✅ Lightweight body: low ground pressure, friendly for indoor floors with limited load capacity ✅ Lithium battery & silent operation: low noise, zero emission for indoor environmental-friendly work ✅ Wide jib luffing + 360° turret rotation: flexible positioning at multiple working angles ✅ Multiple models available: working height from 10m to 17.7m to meet different height demands
Specification
| Model | S08 | S10 | S12 | S14 | S16 | ||
| Maximum working height | 10m | 12m | 14m | 15.7m | 17.7m | ||
| Maximum platform height | 8m | 10m | 12m | 13.7m | 15.7m | ||
| Maximum operating radius | 5m | 5.5m | 6.2m | 7.6m | 8.1m | ||
| Platform dimensions (length * width * height) | 0.9×0.7×1.1m | 1.1×0.7×1.1m | |||||
| Overall vehicle length | 4.7m | 5m | 5.3m | 4.8m | 5.3m | ||
| Vehicle width | 0.85m | ||||||
| Vehicle height | 2.0m | ||||||
| The range of motion of the forearm | －90°-0° | ||||||
| The rotation range of the turntable | 360°Discontinuous | ||||||
| Overall weight of the machine | 1720kg | 1790kg | 1880kg | 1900kg | 2200kg | ||
| Rated load-bearing capacity | 200kg | ||||||
| Carrying capacity | 2 | ||||||
| Driving speed | 1.5km/h | ||||||
| Driving slope | 25% | ||||||
| Maximum working slope | 10% | ||||||
| Pump motor power | 4.5kw | ||||||
| Lithium battery | 48V/230Ah | 48V/300Ah | |||||
| Control voltage | 12V | 20V | |||||
Application Scenarios
Indoor venue maintenance, historic building renovation, shopping mall fitting-out, factory inspection, tree pruning, hotel & office building maintenance and other aerial works in narrow spaces.
