Garden Aluminum Aerial Work Platform
Garden aluminum aerial work platform with optional lifting heights of 5/8/10 meters and rated load of 130/150 kg. Made of high-strength aluminum alloy with Q235 thickened steel chassis to prevent collisions. Compatible with forklifts for fast transport. Equipped with both ground control and remote control for efficient operation. Widely used in factories, hotels, restaurants, stations, airports, theaters and exhibition halls. Compact enough to pass through ordinary doorways and elevators.
- Description
Product Advantages
Garden aluminum aerial work platform offers optional lifting heights of 4, 5, 8 and 10 meters with rated loads of 130-150 kg. Built with high-strength aluminum alloy and a Q235 thickened steel chassis, it resists collisions and works seamlessly with forklifts for fast transport. Equipped with both ground and remote controls to make high-altitude work easier and more efficient.
The unit is widely used in factories, hotels, restaurants, stations, airports, theaters, exhibition halls and similar venues. Its compact dimensions allow it to pass through standard doorways and elevators.
Specifications
| Model | Max Working Height | Max Platform Height | Safe Load | Platform Size (mm) | Overall Dim. (mm) | Outrigger Span (mm) | Weight |
|---|---|---|---|---|---|---|---|
| GTWY04 | 6m | 4m | 150kg | 650 x 650 x 1100 | 1600 x 810 x 2050 | 1800 x 2050 | ~300kg |
| GTWY05 | 7m | 5m | 150kg | 650 x 650 x 1100 | 1600 x 810 x 2050 | 1800 x 2050 | ~300kg |
| GTWY08 | 10m | 8m | 130kg | 650 x 650 x 1100 | 1600 x 810 x 2050 | 1800 x 2050 | ~450kg |
| GTWY10 | 12m | 10m | 130kg | 650 x 650 x 1100 | 1600 x 810 x 2050 | 1800 x 2050 | ~480kg |
Common features for all models: 1 operator capacity, 0.09 m min ground clearance, 1.175 m wheelbase, 220V/1.1 kW lift motor, 3-5 m/min lifting speed, 400-8 pneumatic tires, 3 mm steel deck plate, 40 mm cylinder bore (1 cylinder), 6.5 mm mast thickness, remote-control distribution box, Q235 steel rectangular-tube chassis.
Specifications are for reference only; please refer to the actual unit.

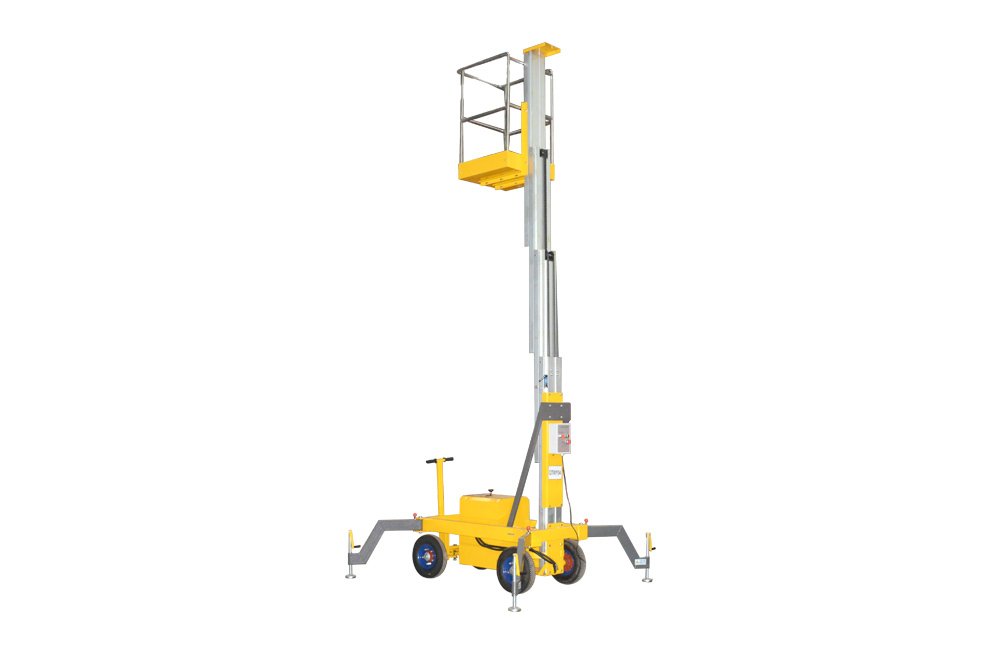

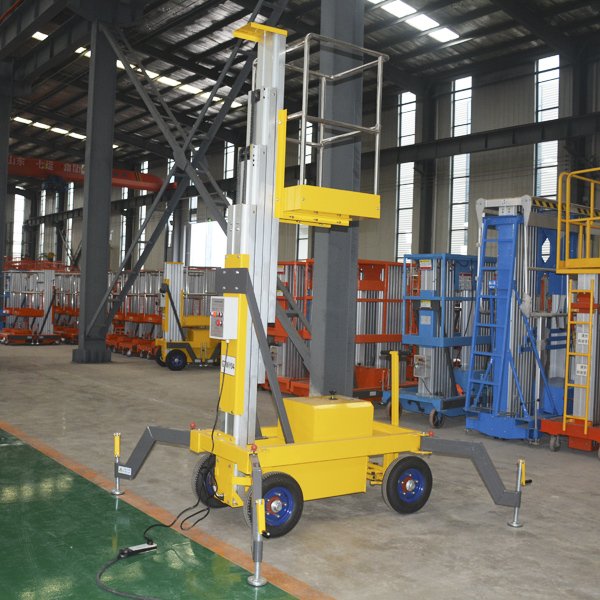

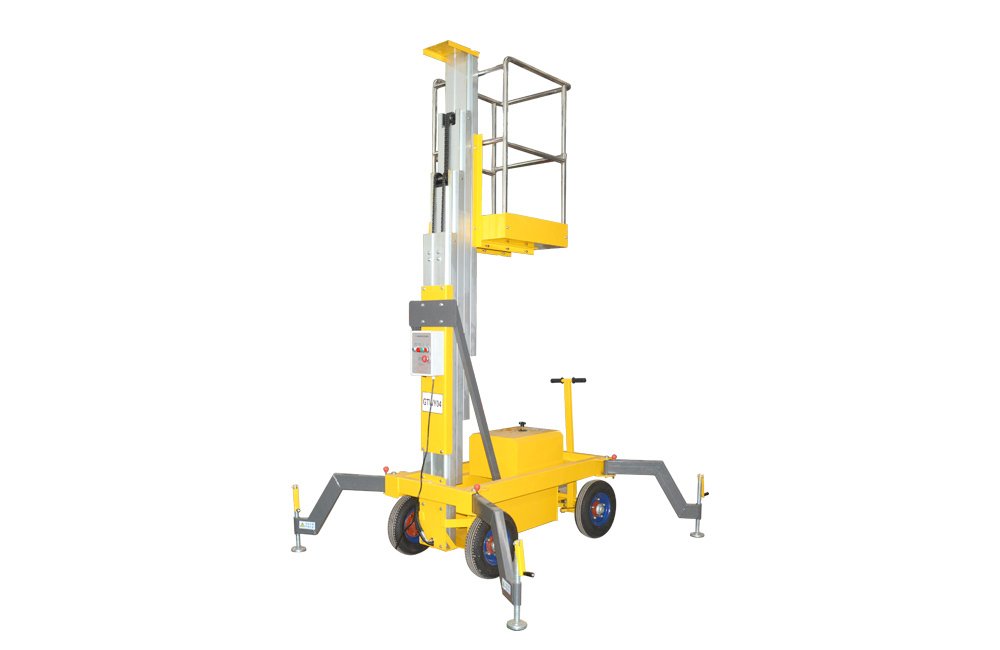

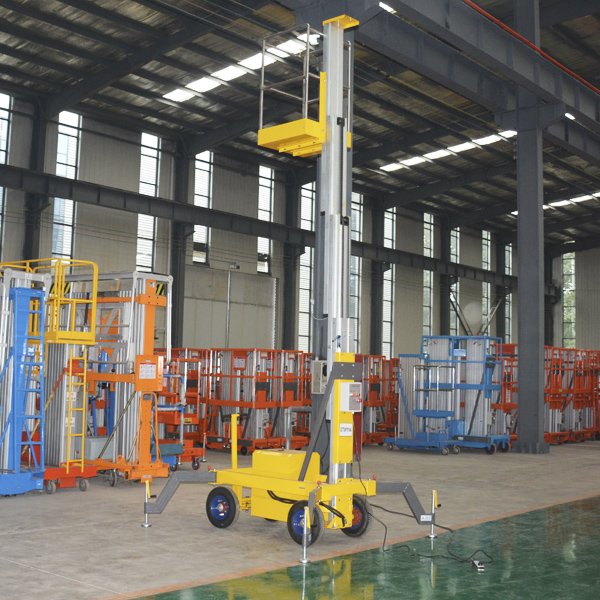

Product Display
