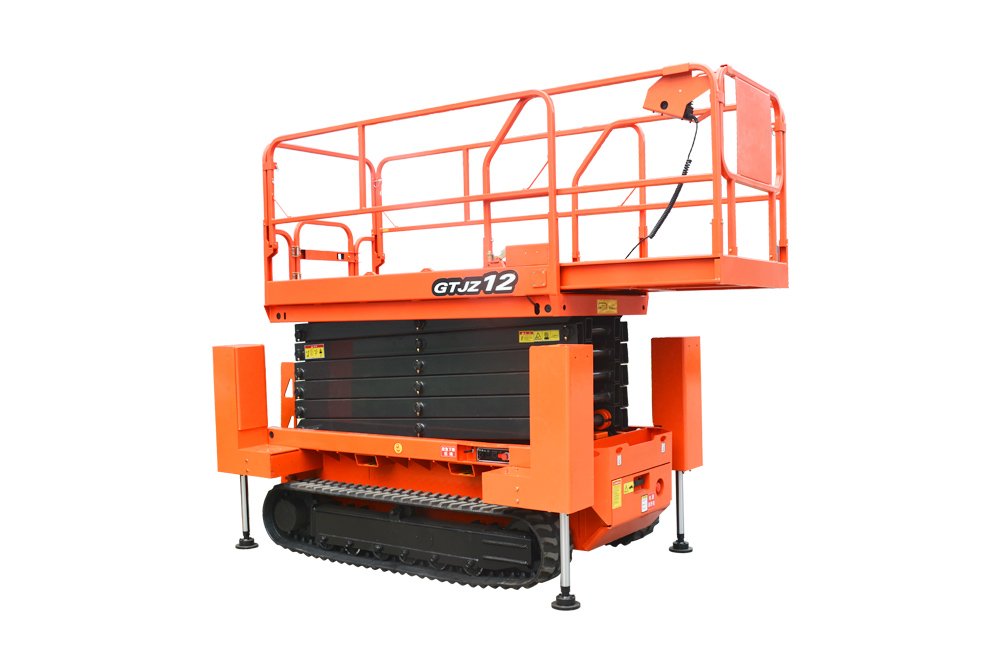

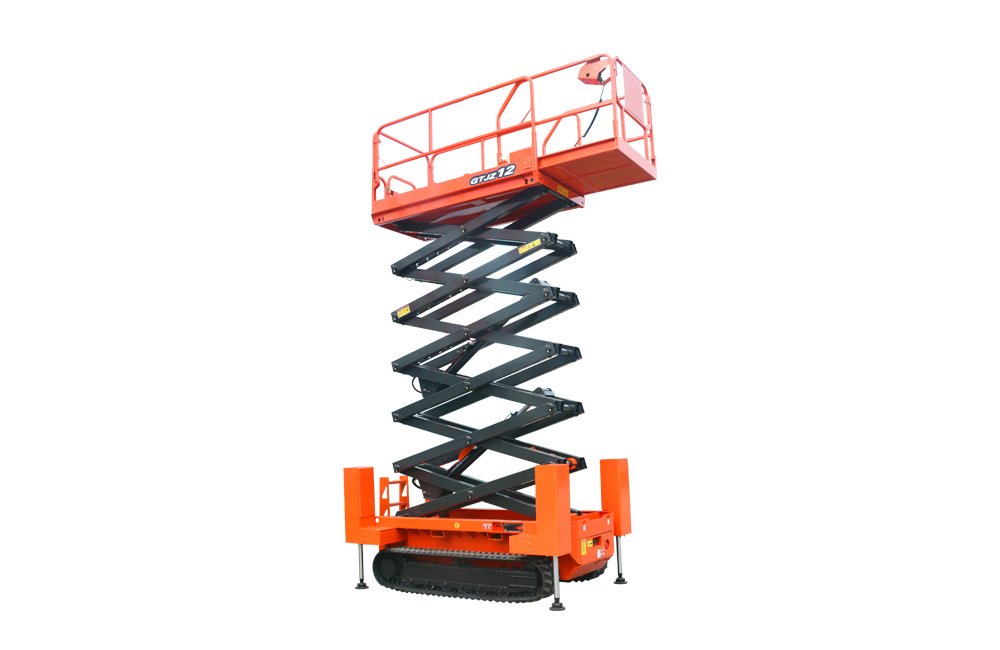

12m Hydraulic Outrigger Crawler Lift Platform

Crawler self-propelled scissor lift platform with auto-drive: a single operator can complete raising, lowering, forward, reverse and steering at the platform. Good aesthetics, agile, easy to operate, high load capacity, smooth lifting, and reliable safety.

Description

Product Advantages

Optional lifting height 4-14 m, rated load 230-320 kg. Self-driving design lets a single operator complete raising, lowering, forward, reverse and steering at the platform.

Quick-deploy foot extension platform
Foldable guardrails reduce overall size
25% gradeability handles inclines smoothly

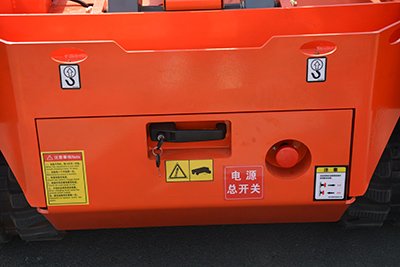

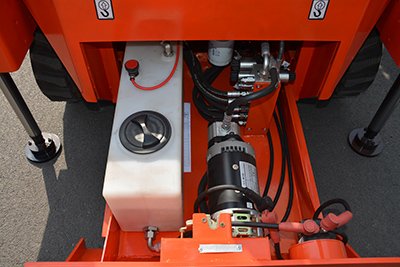

Drawer-style chassis for easy maintenance
Self-displaying fault codes for fast diagnosis

Specifications

Model	Overall Dim. (L x W x H) (mm)	Platform L x W (mm)	Platform Height (m)	Extension (mm)	Load (kg)	Weight (kg)
GTJZ04	1515 x 1097 x 1660	1300 x 740	4	600	240	995
GTJZ06	1915 x 1210 x 2140	1670 x 760	6	900	240	1855
GTJZ08	2705 x 1325 x 2500	2263 x 1129	8	900	320	3000
GTJZ10	2515 x 1390 x 2041	2271 x 1110	10	900	300	3200

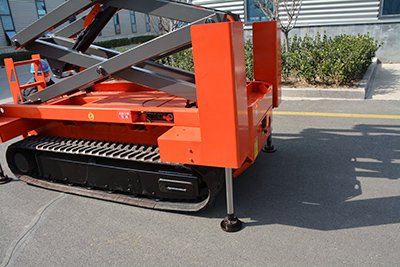

GTJZ12 (Slide-out Outrigger)	2855 x 1390 x 2172	2271 x 1110	12	900	300	3250
GTJZ12 (One-Touch Leveling)	2731 x 1661 x 2694	2271 x 1110 (electrocoat)	12	900	300	3670
