Vehicle-Mounted Aluminum Aerial Work Platform
Vehicle-mounted aluminum aerial lift, an aerial work platform installed on a truck chassis. Built with a dedicated chassis, working boom, three-dimensional swing structure, flexible clamping device, hydraulic system, electrical system and safety devices. Used for municipal maintenance, street lighting, highway facility maintenance, emergency repairs, garden pruning, gas station servicing and more.
- Description
The vehicle-mounted aluminum aerial lift is an aerial work device installed on a truck. It consists of a dedicated chassis, working boom, three-dimensional swing structure, flexible clamping device, hydraulic system, electrical system and safety devices.
Typical applications: municipal construction maintenance, street lighting, highway facility maintenance, emergency repairs, garden pruning, gas station servicing and similar tasks.
Product Advantages
Compact size and easy telescoping; smooth, safe extension during raising; rigid structure and high efficiency once raised.
Mobile, highly maneuverable and customizable.
High-strength guardrails for fall protection make aerial work safer and more convenient.
Safe, efficient remote control box: the lift can be controlled from a control box at ground level or via a remote at the platform or near the unit.
Emergency lowering button: in an emergency, turn the emergency-lowering knob counter-clockwise to bring the platform down. In normal operation, the knob must be turned fully clockwise or the platform will not rise.
Sandblasted, derusted and electrostatically powder-coated finish: every machine is processed through a 300+ meter electrostatic powder-coating line for a beautiful, durable finish.
Available in single-mast, dual-mast standard top guardrail and dual-mast side guardrail configurations. Lifting height 4-14 m, load 100-300 kg, made of high-strength aluminum alloy with Q235 thickened steel chassis.
Specifications
| Configuration | Model | Max Platform Height (m) | Rated Load (kg) | Platform Size (m) | Voltage (V) | Overall Dim. (m) |
|---|---|---|---|---|---|---|
| Single-Mast | CZGTWY4-100-1 | 4 | 100 | 0.65 x 0.5 | 24 | - |
| CZGTWY6-100-1 | 6 | 150 | 0.65 x 0.5 | 24 | - | |
| CZGTWY8-100-1 | 8 | 130 | 0.65 x 0.65 | 24 | - | |
| CZGTWY10-100-1 | 10 | 130 | 0.65 x 0.65 | 24 | - | |
| Dual-Mast (Standard Guardrail) | CZGTWY6-200-2 | 6 | 300 | 1.2 x 0.63 | 24 | - |
| CZGTWY8-200-2 | 8 | 300 | 1.2 x 0.63 | 24 | - | |
| CZGTWY10-200-2 | 10 | 250 | 1.5 x 0.63 | 24 | - | |
| CZGTWY12-200-2 | 12 | 200 | 1.5 x 0.63 | 24 | - | |
| CZGTWY14-200-2 | 14 | 150 | 1.5 x 0.63 | 24 | - | |
| Dual-Mast (Side Guardrail) | CZGTWY6-200-2 | 6 | 300 | 1.27 x 0.65 | 24 | 1.35 x 1.45 x 1.91 |
| CZGTWY8-200-2 | 8 | 300 | 1.27 x 0.65 | 24 | 1.35 x 1.45 x 1.91 | |
| CZGTWY10-200-2 | 10 | 250 | 1.27 x 0.65 | 24 | 1.35 x 1.45 x 1.91 | |
| CZGTWY12-200-2 | 12 | 200 | - | 24 | - | |
| CZGTWY14-200-2 | 14 | 150 | - | 24 | - |
Specifications are for reference only; please refer to the actual unit.

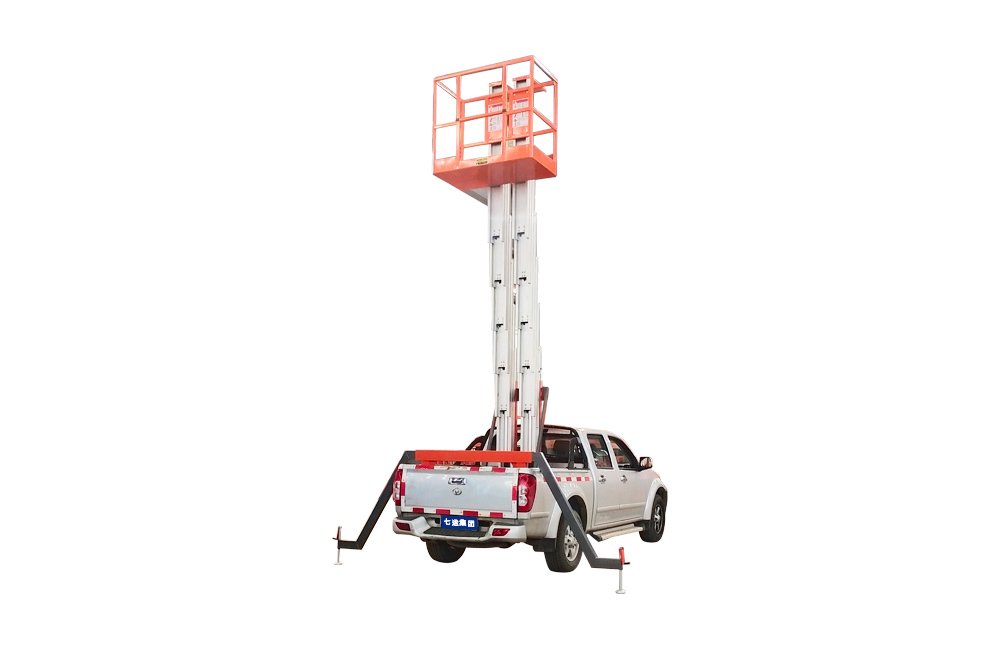

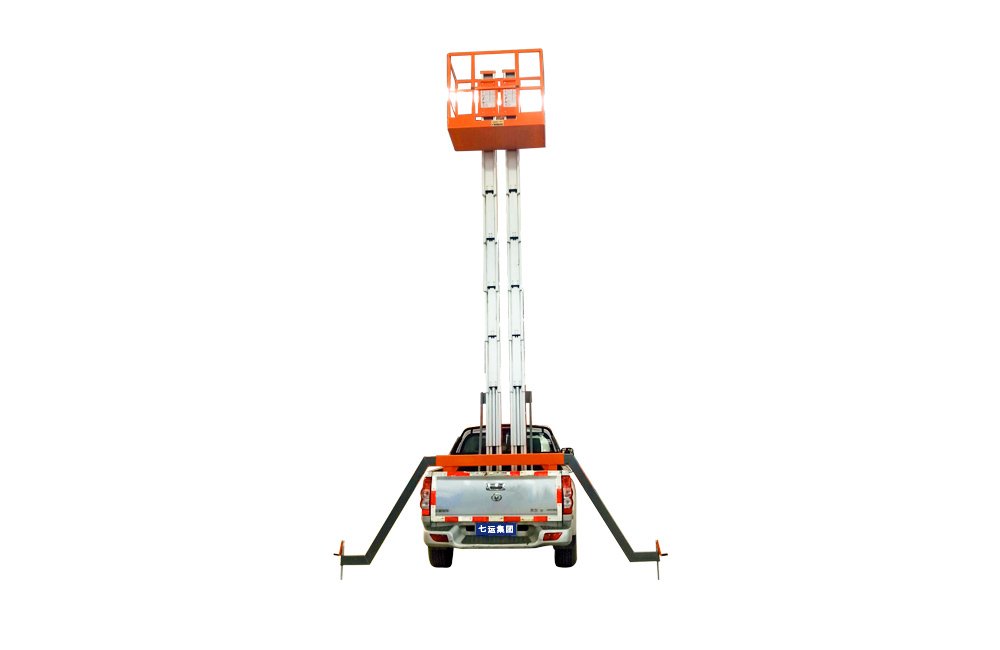

Product Display
