Single-Mast Push-Around Aluminum Aerial Work Platform
Push-around aluminum aerial work platform, single-mast version with optional lifting heights of 8 or 10 meters and rated load of 130-300 kg. High-strength aluminum alloy frame with Q235 thickened steel chassis. Equipped with both ground and remote controls. Widely used in factories, hotels, restaurants, stations, airports, theaters and exhibition halls.
- Description
Product Advantages
The push-around aluminum aerial work platform is available in single-mast and dual-mast versions, with optional lifting heights of 4-10 meters and rated loads from 100 to 300 kg.
Made of high-strength aluminum alloy with a Q235 thickened steel chassis to prevent collisions, it works seamlessly with forklifts for fast transport. Standard ground and remote controls make high-altitude work easy and efficient. Widely used in factories, hotels, restaurants, stations, airports, theaters and exhibition halls; compact enough to pass through ordinary doorways and elevators.
Specifications
| Configuration | Model | Max Platform Height (m) | Rated Load (kg) | Platform Size (m) | Voltage (V) | Weight (kg) | Overall Dim. (m) |
|---|---|---|---|---|---|---|---|
| Single-Mast Push-Around | FGTWY4-100-1 | 4 | 100 | 0.65 x 0.5 | 24 | - | - |
| FGTWY6-100-1 | 6 | 150 | 0.65 x 0.5 | 24 | - | - | |
| FGTWY8-100-1 | 8 | 130 | 0.65 x 0.65 | 24 | 520 | 1.85 x 0.78 x 1.98 | |
| FGTWY10-100-1 | 10 | 130 | 0.65 x 0.65 | 24 | 550 | 1.85 x 0.78 x 1.98 |
Specifications are for reference only; please refer to the actual unit.

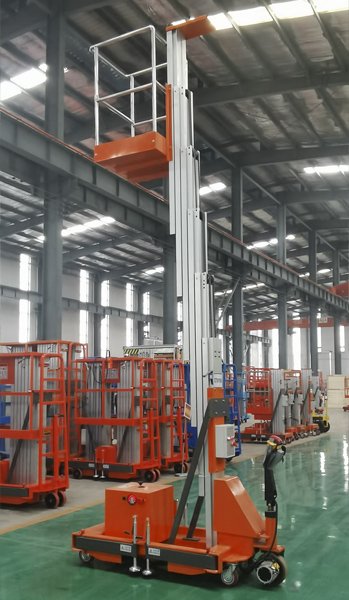

Product Display

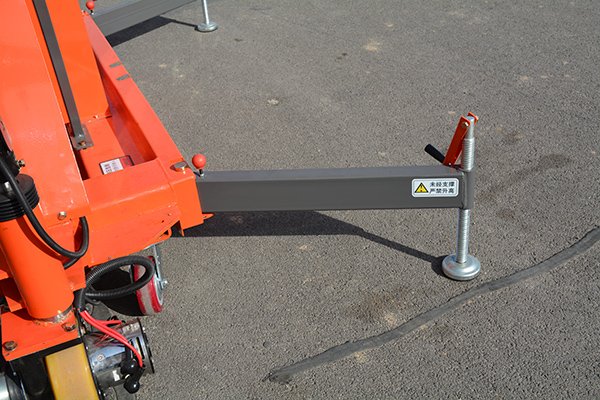

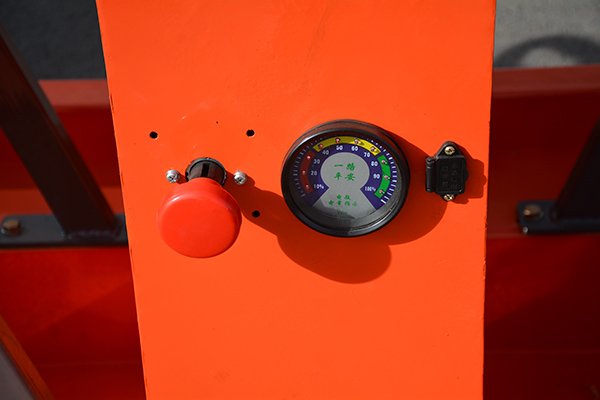

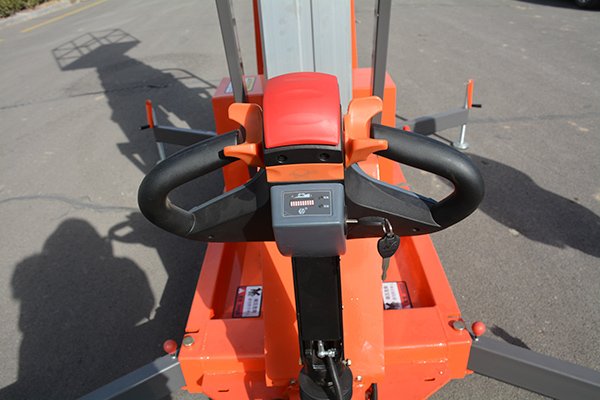

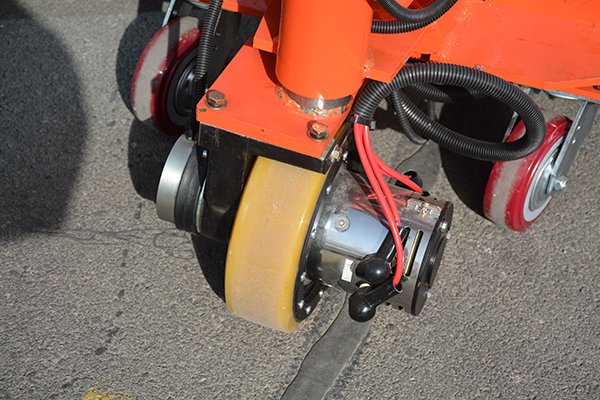

Detail Display
