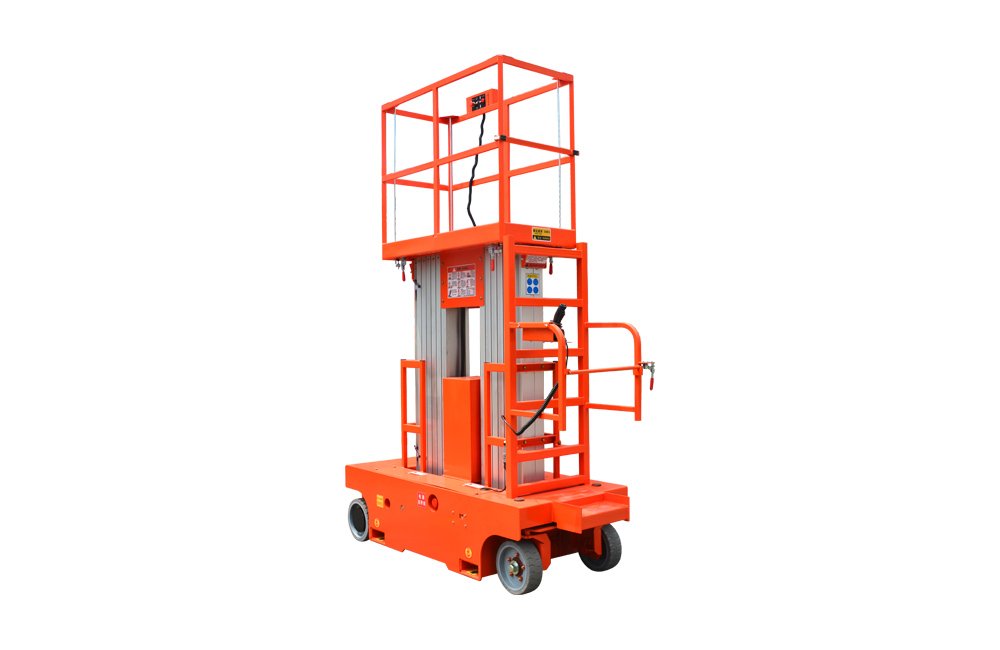

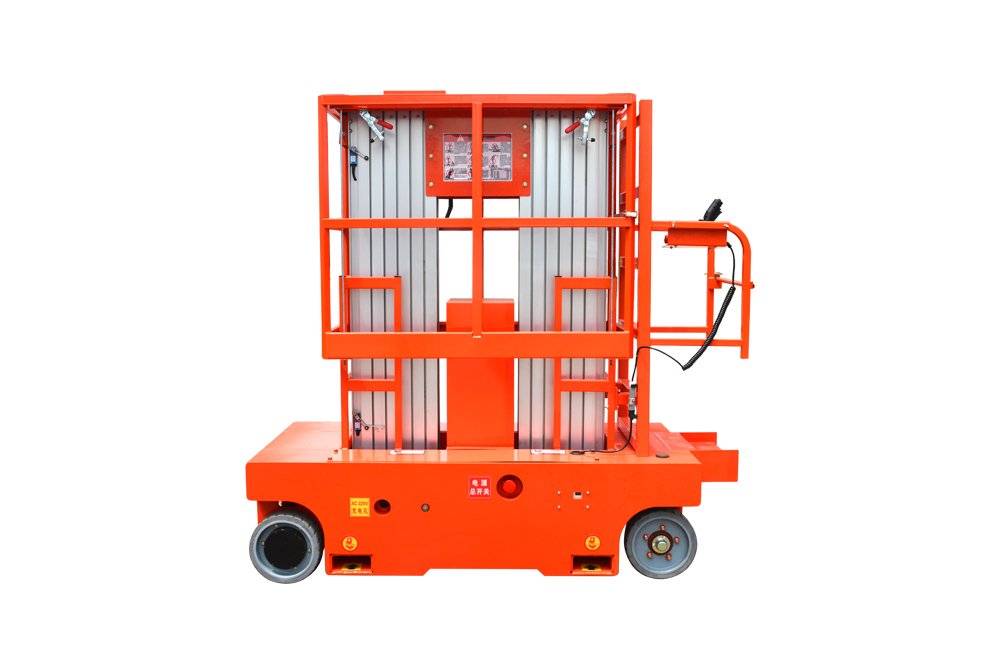

Dual-Mast Self-Propelled Aluminum Aerial Work Platform
Dual-mast self-propelled aluminum aerial work platform with optional 4-8 m lifting height and 300 kg rated load. High-strength aluminum alloy with Q235 thickened steel chassis. Standard ground control and handle control for efficient operation.
- Description
Product Advantages
Optional lifting height of 4-8 meters with 300 kg rated load. Made of high-strength aluminum alloy with a Q235 thickened steel chassis to prevent collisions, forklift-compatible for fast transport. Standard ground and handle controls make high-altitude work efficient and labor-saving.
Easy-Install High-Strength Guardrails

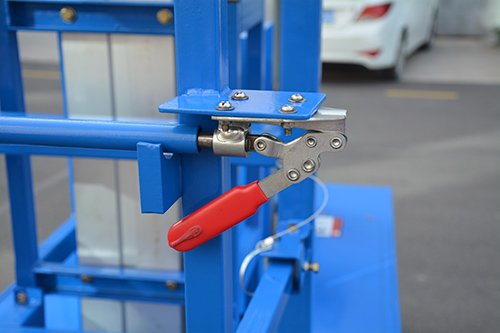

Connect power and press the up button to raise the platform until the lip plates on both sides of the guardrail are higher than the flap; open the flaps (note: all flaps must be opened), press down to lower the platform, then lock the four corners with the quick clamps to complete guardrail installation.

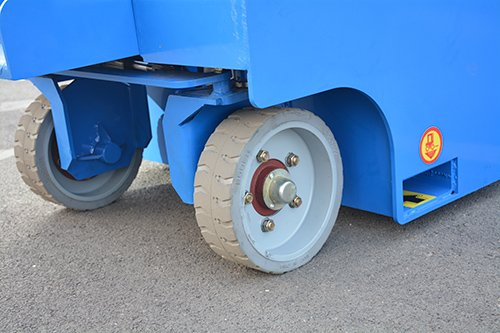

Durable Polyurethane Wheels
Hard-wearing polyurethane wheels suit any floor with low rolling resistance, low noise and no damage to the surface.

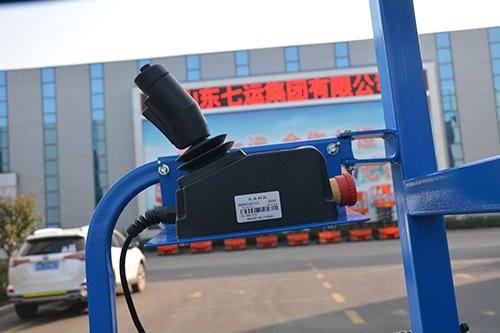

Safe, Efficient Remote Control Box
The aluminum lift comes with a remote control box, allowing operation from the ground or from above/beside the unit via the wireless remote.
Emergency Lowering Button
In an emergency, turn the emergency-lowering knob counter-clockwise to lower the platform.
Specifications
| Model | Max Platform Height (m) | Rated Load (kg) | Platform Size (m) | Voltage (V) | Weight (kg) | Overall Dim. (m) |
|---|---|---|---|---|---|---|
| ZXGTWY04-2 | 4 | 300 | - | 24 | - | - |
| ZXGTWY06-2 | 6 | 300 | 1.38 x 0.7 | 24 | 1100 | 1.8 x 0.97 x 1.956 |
| ZXGTWY08-2 | 8 | 300 | 1.38 x 0.7 | 24 | 1136 | 2.135 x 0.925 x 2.185 |
Specifications are for reference only; please refer to the actual unit.

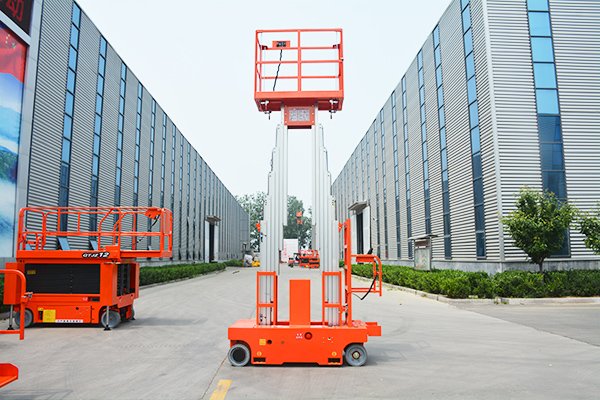

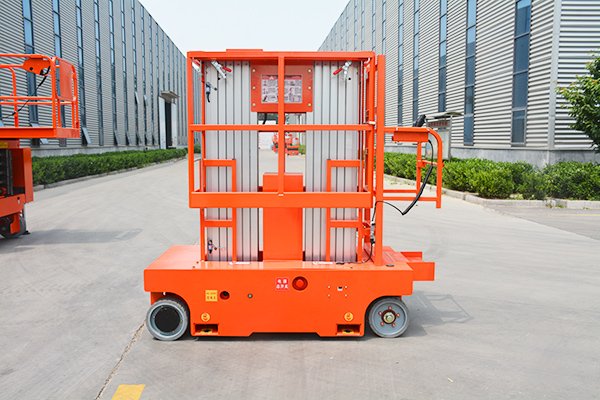

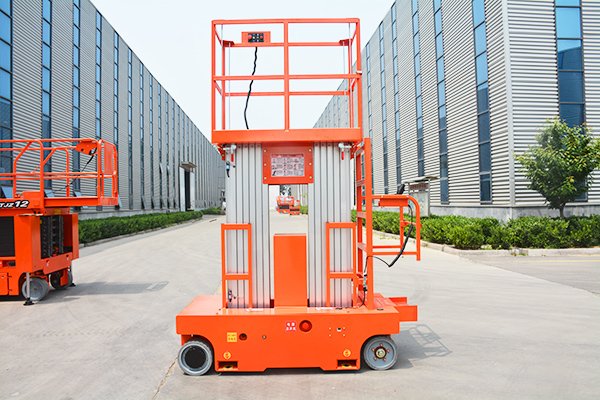

Product Display

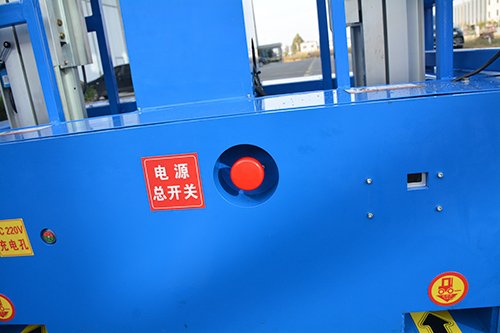

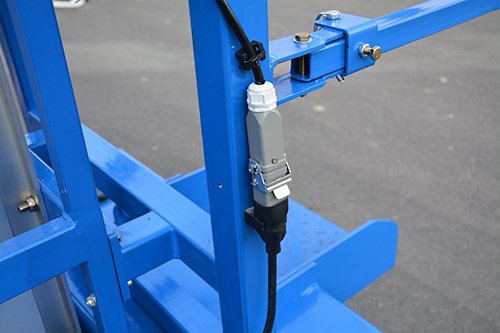

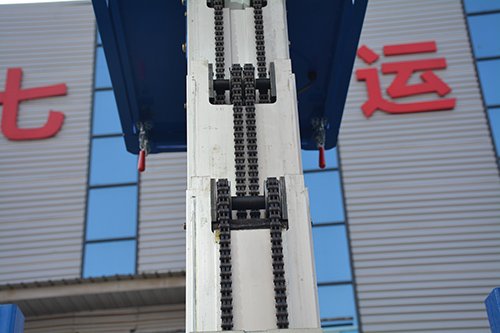

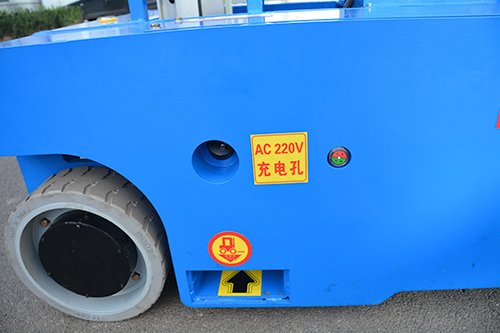

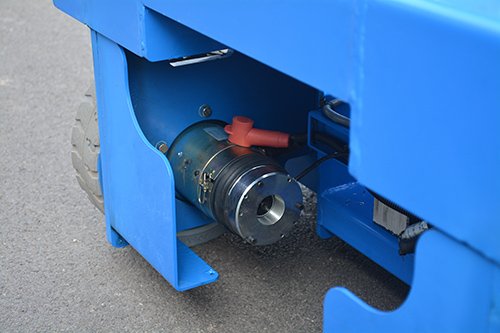

Detail Display
