Single-Mast Aluminum Aerial Work Platform

Aluminum aerial work platform available in push-around, self-propelled, towed and vehicle-mounted configurations. Single/dual/triple-mast versions, lifting heights 4-16 m, rated loads 130-300 kg. Widely used in factories, hotels, restaurants, stations, airports, theaters and exhibition halls; compact enough to pass through ordinary doorways and elevators.

Description

Product Advantages

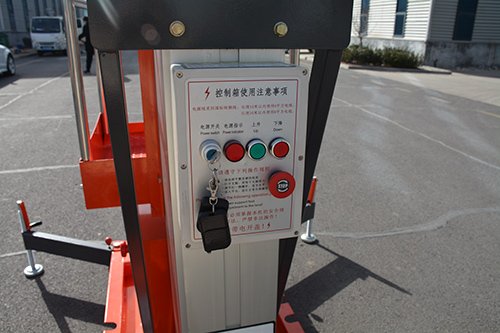

Single-mast aluminum lift offers optional lifting heights of 4-10 meters and rated load of 130-150 kg. High-strength aluminum alloy with Q235 thickened steel chassis prevents collisions, forklift-compatible for fast transport. Standard ground and remote controls make operation efficient and labor-saving.

Specifications

Model	Max Working Height	Max Platform Height	Rated Load	Platform Size	Overall Dim.	Outrigger Span	Weight
QYLH4-100-1	6m	4m	150kg	0.65 x 0.65 x 1.1m	1.42 x 0.78 x 1.97m	1.702 x 1.914m	344kg
GTWY06-1	8m	6m	150kg	0.65 x 0.65 x 1.1m	1.42 x 0.78 x 1.97m	1.702 x 1.914m	370kg
GTWY08-1	10m	8m	130kg	0.65 x 0.65 x 1.1m	1.42 x 0.78 x 1.97m	1.702 x 1.914m	388kg
GTWY10-1	12m	10m	130kg	0.65 x 0.65 x 1.1m	1.42 x 0.78 x 1.97m	1.702 x 1.914m	441kg
