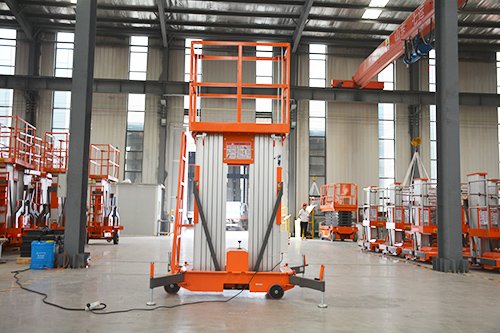

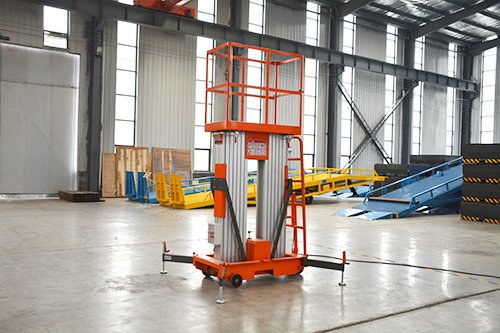

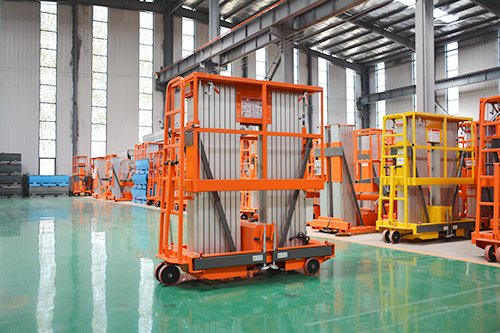

Dual-Mast Aluminum Aerial Work Platform

Aluminum aerial work platform available in push-around, self-propelled, towed and vehicle-mounted configurations. Single/dual/triple-mast versions, lifting heights 4-16 m, rated loads 130-300 kg. Widely used in factories, hotels, restaurants, stations, airports, theaters and exhibition halls.

Description

Product Advantages

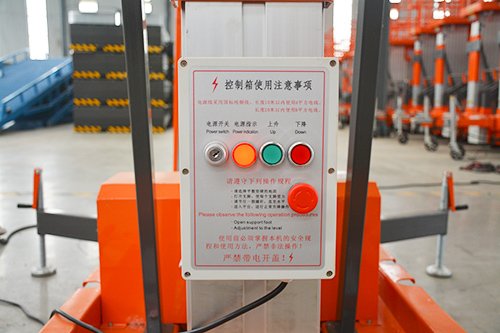

Dual-mast aluminum lift offers optional lifting heights of 6-14 meters and rated load of 150-300 kg. High-strength aluminum alloy with Q235 thickened steel chassis prevents collisions, forklift-compatible for fast transport. Standard ground and remote controls make operation efficient and labor-saving.

Specifications

Model	Max Working Height	Max Platform Height	Rated Load	Platform Size	Overall Dim.	Outrigger Span	Weight
GTWY06-2	8m	6m	300kg	1.2 x 0.63 x 1.1m	1.55 x 0.85 x 2m	1.694 x 1.814m	558kg
GTWY08-2	10m	8m	300kg	1.2 x 0.63 x 1.1m	1.55 x 0.85 x 2m	1.694 x 1.814m	664kg
GTWY10-2	12m	10m	250kg	1.5 x 0.63 x 1.1m	1.84 x 0.85 x 2m	1.954 x 2.259m	726kg
GTWY12-2	14m	12m	200kg	1.5 x 0.63 x 1.1m	1.84 x 0.85 x 2m	1.954 x 2.259m	764kg
GTWY14-2	16m	14m	150kg	1.5 x 0.63 x 1.1m	1.95 x 1.05 x 2.35m	2.24 x 2.41m	902kg
