Triple-Mast Aluminum Aerial Work Platform
Aluminum aerial work platform available in push-around, self-propelled, towed and vehicle-mounted configurations. Single/dual/triple-mast versions, lifting heights 4-16 m, rated loads 130-300 kg. Widely used in factories, hotels, restaurants, stations, airports, theaters and exhibition halls.
- Description
Product Advantages
Triple-mast aluminum lift offers optional lifting heights of 12-16 meters and 200 kg rated load. High-strength aluminum alloy with Q235 thickened steel chassis prevents collisions, forklift-compatible for fast transport. Standard ground and remote controls make operation efficient and labor-saving.
Specifications
| Model | Max Working Height | Max Platform Height | Rated Load | Platform Size | Overall Dimensions | Outrigger Span | Weight |
|---|---|---|---|---|---|---|---|
| GTWY10-3 | 12m | 10m | 250kg | 1.45 x 0.9 x 1m | 1.65 x 1.3 x 1.9m | 2.22 x 2.27m | 980kg |
| GTWY12-3 | 14m | 12m | 300kg | 1.475 x 0.88 x 1.1m | 1.845 x 1.1 x 2m | 2.22 x 2.27m | 1050kg |
| GTWY14-3 | 16m | 14m | 250kg | 1.54 x 0.94 x 1.1m | 1.798 x 1.15 x 2.37m | 2.945 x 2.58m | 1120kg |
| GTWY16-3 | 18m | 16m | 150kg | 1.54 x 0.94 x 1.1m | 1.798 x 1.15 x 2.67m | 2.945 x 2.58m | 1200kg |
Specifications are for reference only; please refer to the actual unit.

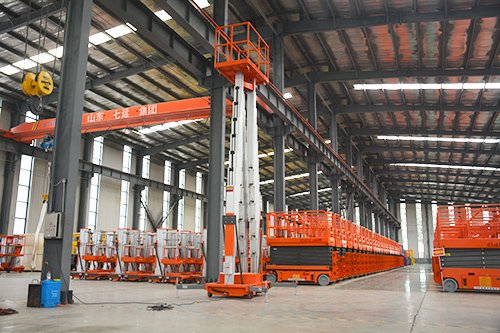

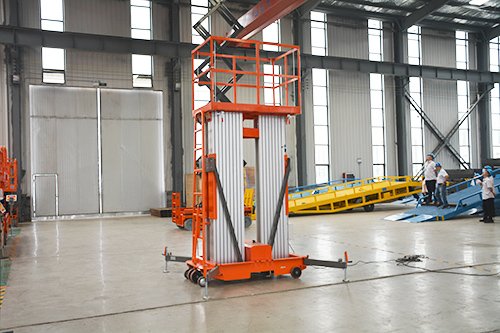

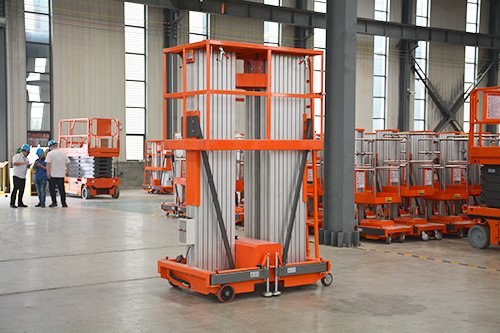

Product Display
