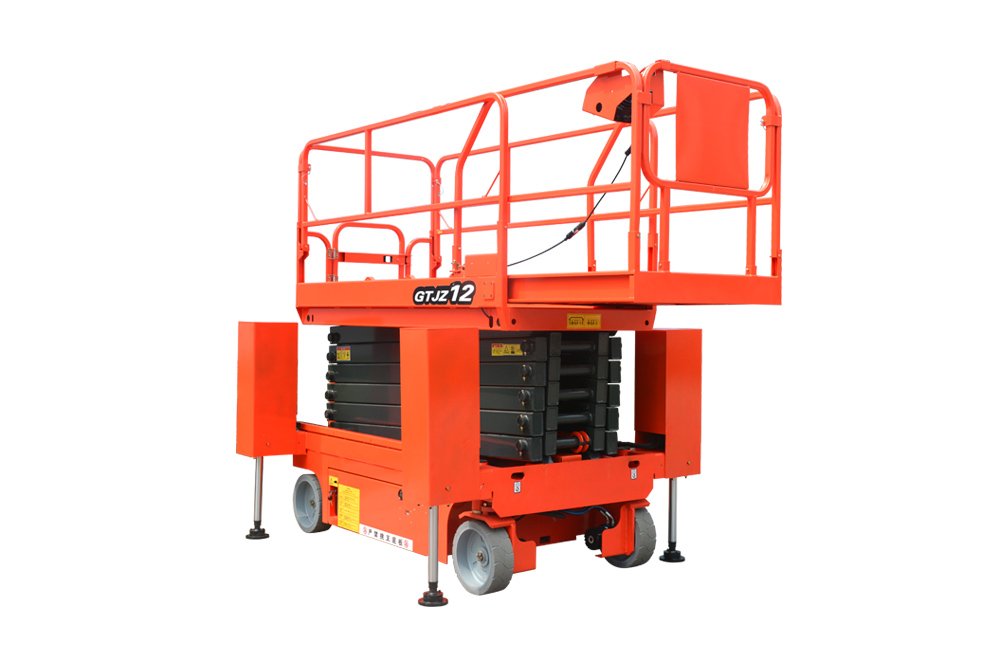

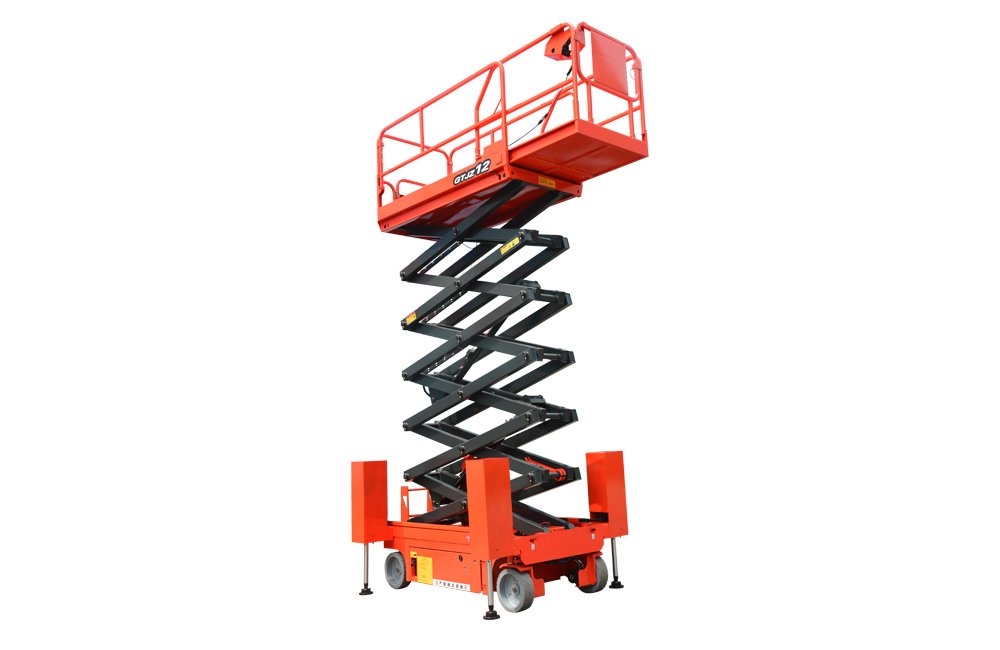

One-Touch Self-Leveling Self-Propelled Scissor Lift

One-Touch Self-Leveling Self-Propelled Scissor Lift

Self-propelled scissor lift platform with hydraulic outriggers and one-touch automatic leveling. Suitable for terminals, stations, ports, shopping malls and other large-area continuous aerial work.

Description

Specifications

Model	Platform Size (m)	Capacity (kg)	Net Height (m)	Overall Dim. (rails up) (m)	Extension (m)	Power (kW)	Weight (kg)
GTJZ-6A	2.30 x 0.81	380	6	2.480 x 0.81 x 2.18	0.9	3.3	1850
GTJZ-6	2.30 x 1.13	550	6	2.480 x 1.19 x 2.19	0.9	3.3	2050
GTJZ-8A	2.29 x 0.81	230	8	2.480 x 0.85 x 2.30	0.9	3.3	2030
GTJZ-8	2.29 x 1.13	450	8	2.480 x 1.19 x 2.32	0.9	3.3	2190
GTJZ-10	2.30 x 1.13	320	10	2.495 x 1.181 x 2.45	0.9	3.3	2500
GTJZ-12	2.29 x 1.13	320	11.8	2.495 x 1.187 x 2.585	0.9	4.5	2960
GTJZ-14	2.67 x 1.13	227	13.8	2.840 x 1.40 x 2.595	0.9	4.5	3390
