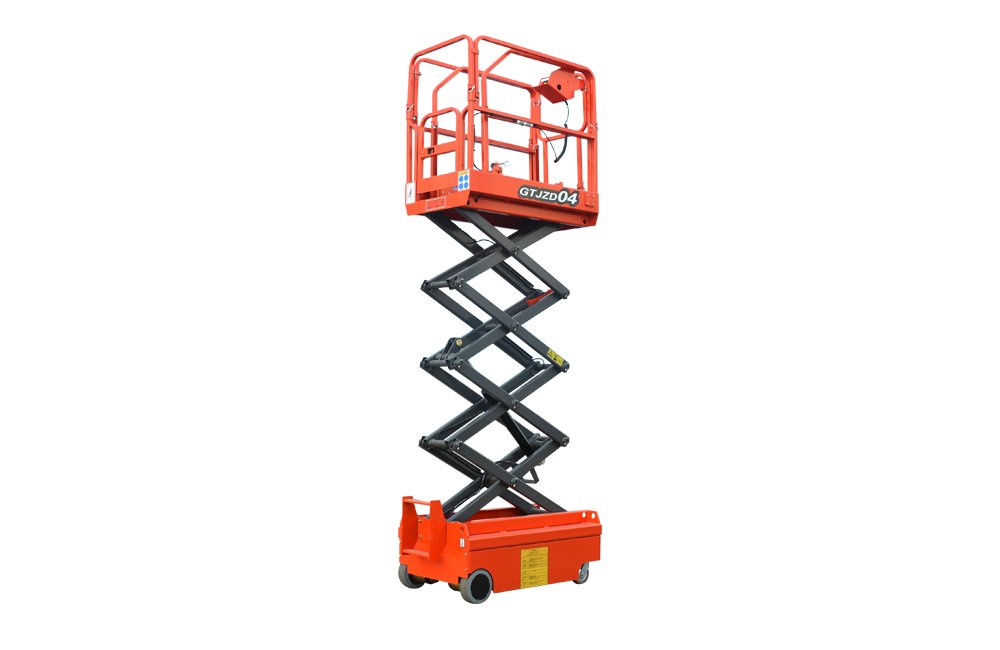

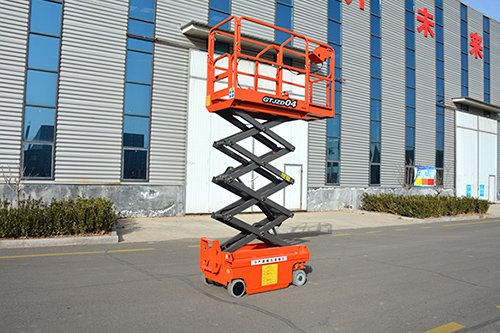

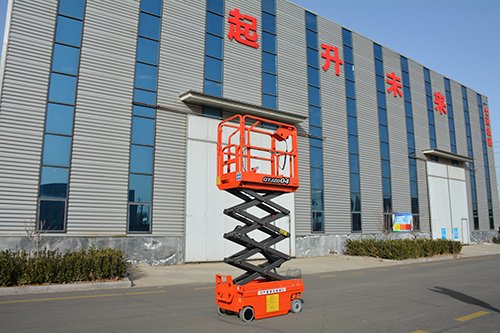

Mini Self-Propelled Scissor Lift Platform

Lifting height 6-14 m, rated load 227-550 kg. Self-driving design lets a single operator perform raising, lowering, forward, reverse and steering at high altitude, dramatically improving efficiency over traditional hydraulic platforms while reducing manpower and labor intensity.

Description

Product Advantages

Optional lifting heights of 6-14 meters and rated loads of 227-550 kg. The unit features self-driving operation: in different working states it can travel quickly or slowly, and a single operator at the platform can complete raising, lowering, forward, reverse and steering. Compared with traditional hydraulic platforms it dramatically improves efficiency and reduces manpower and labor intensity.

Specifications

Model	Platform Size (m)	Capacity (kg)	Net Height (m)	Overall Dim. (mm)	Extension (m)	Weight (kg)
GTJZD03	1.29 x 0.7	240	3	1.435 x 0.76 x 1.90	0.6	805

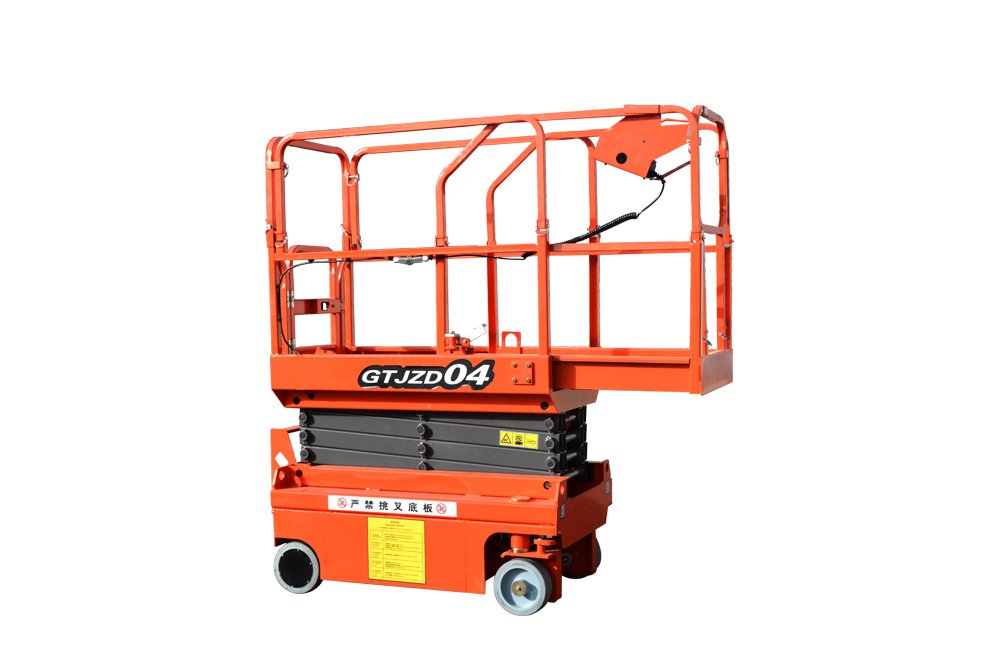

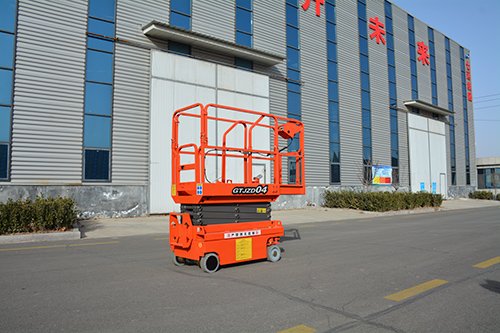

GTJZD04	1.29 x 0.7	240	4	1.440 x 0.76 x 2030	0.6	890
GTJZD03A	1.15 x 0.7	240	3	1.30 x 0.76 x 1.98	0.55	600
GTJZD04 (Compact)	1.29 x 0.7	240	4	1.440 x 0.76 x 2030	0.6	860
