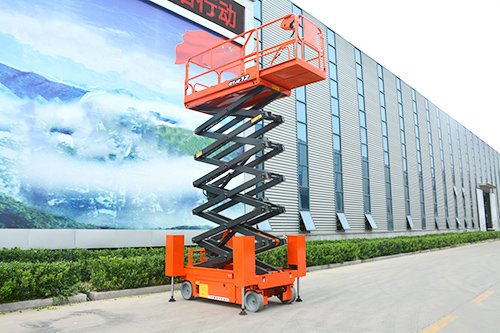

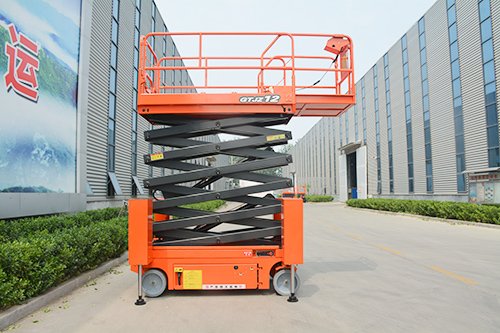

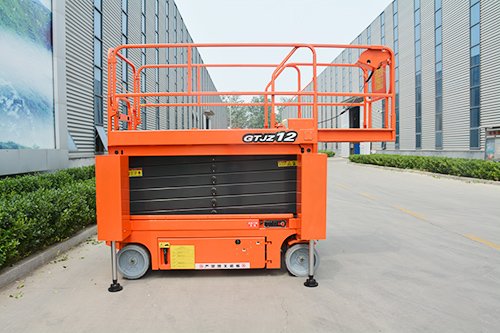

Self-Propelled Hydraulic Scissor Lift Platform

Self-propelled hydraulic scissor lift platform with hydraulic-driven travel and lifting, suitable for large-area continuous aerial work.

Model	Platform Size (m)	Capacity (kg)	Net Height (m)	Overall Dim. (rails up) (m)	Extension (m)	Power (kW)	Weight (kg)
GTJZ-6A	2.30 x 0.81	380	6	2.480 x 0.81 x 2.18	0.9	3.3	1880
GTJZ-6	2.30 x 1.13	550	6	2.480 x 1.19 x 2.19	0.9	3.3	2150
GTJZ-8A	2.29 x 0.81	230	8	2.480 x 0.85 x 2.30	0.9	3.3	2030
GTJZ-8	2.29 x 1.13	450	8	2.480 x 1.19 x 2.32	0.9	3.3	2300
GTJZ-10	2.30 x 1.13	320	10	2.495 x 1.181 x 2.45	0.9	3.3	2530
GTJZ-12	2.29 x 1.13	320	11.8	2.495 x 1.187 x 2.585	0.9	4.5	2870
GTJZ-14	2.67 x 1.13	227	13.8	2.840 x 1.40 x 2.595	0.9	4.5	3340
