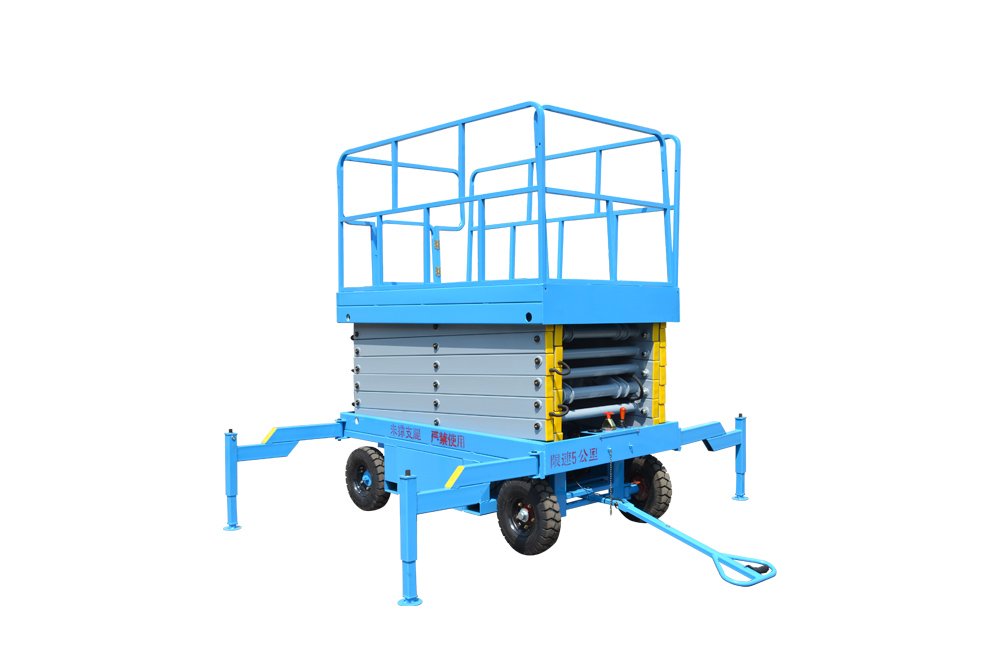

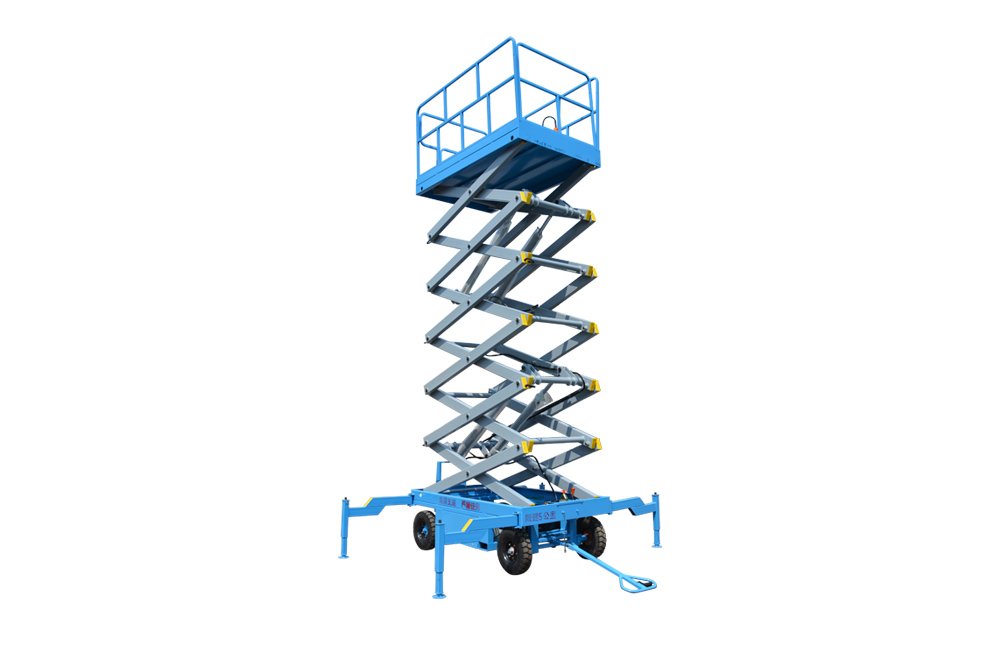

Push-Around Scissor Lift Platform

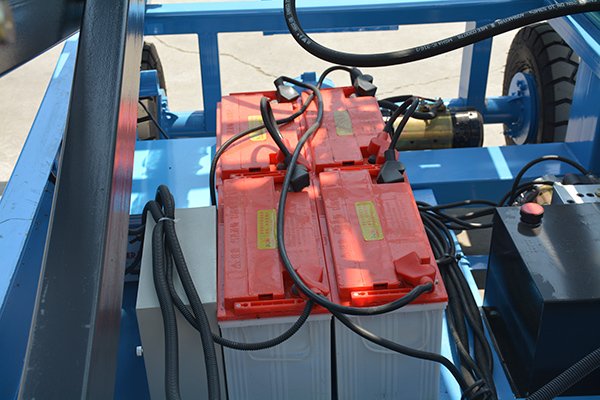

Optional lifting and travel power: battery drive + battery lift; battery drive + AC lift; battery drive + AC/DC dual mode.

Optional lifting/travel power: battery drive + battery lift; battery drive + AC lift; battery drive + AC/DC dual mode.

Model	Platform Size (mm)	Capacity (kg)	Net Height (m)	Overall Dim. (mm)	Weight (kg)
QYCY0.5-4	2100 x 830	500	4	2250 x 950 x 1100	800
QYCY0.5-6	2100 x 830	500	6	2250 x 950 x 1200	880
QYCY0.5-7	2100 x 830	500	6.8	2250 x 950 x 1200	970
QYCY0.5-8	2100 x 930	500	8	2250 x 1060 x 1380	1050
QYCY0.5-9	2100 x 930	500	9	2250 x 1060 x 1500	1165
QYCY0.5-10	2100 x 1230	500	10	2250 x 1350 x 1530	1360
QYCY0.3-11	2100 x 1230	300	11	2250 x 1350 x 1650	1400
QYCY0.5-12	2550 x 1530	500	12	2796 x 1670 x 1750	2260
QYCY0.5-14	2812 x 1530	500	14	3067 x 1730 x 1810	2486
QYCY0.3-16	2812 x 1600	300	16	3067 x 1810 x 2080	3063
QYCY0.3-18	3070 x 1600	300	18	3321 x 1810 x 2080	3900
QYCY1.0-4	2100 x 1200	1000	4	2250 x 1350 x 1180	1250
QYCY1.0-6	2100 x 1200	1000	6	2250 x 1350 x 1300	1400
QYCY1.0-8	2100 x 1200	1000	8	2250 x 1350 x 1420	1585
QYCY1.0-10	2100 x 1200	1000	10	2250 x 1350 x 1530	1700
QYCY1.0-12	2550 x 1530	1000	12	2796 x 1700 x 1780	2560
QYCY1.0-14	2812 x 1600	1000	14	3067 x 1810 x 1900	3230
QYCY1.5-6	2100 x 1530	1500	6	2250 x 1750 x 1530	1780
QYCY1.5-8	2100 x 1530	1500	8	2250 x 1750 x 1690	2070
QYCY1.5-10	2100 x 1500	1500	10	2250 x 1750 x 1850	2250
QYCY2.0-6	2100 x 1530	2000	6	2250 x 1750 x 1530	1780
QYCY2.0-8	2100 x 1530	2000	8	2250 x 1750 x 1690	2070
QYCY2.0-10	2100 x 1530	2000	10	2250 x 1750 x 1850	2250
