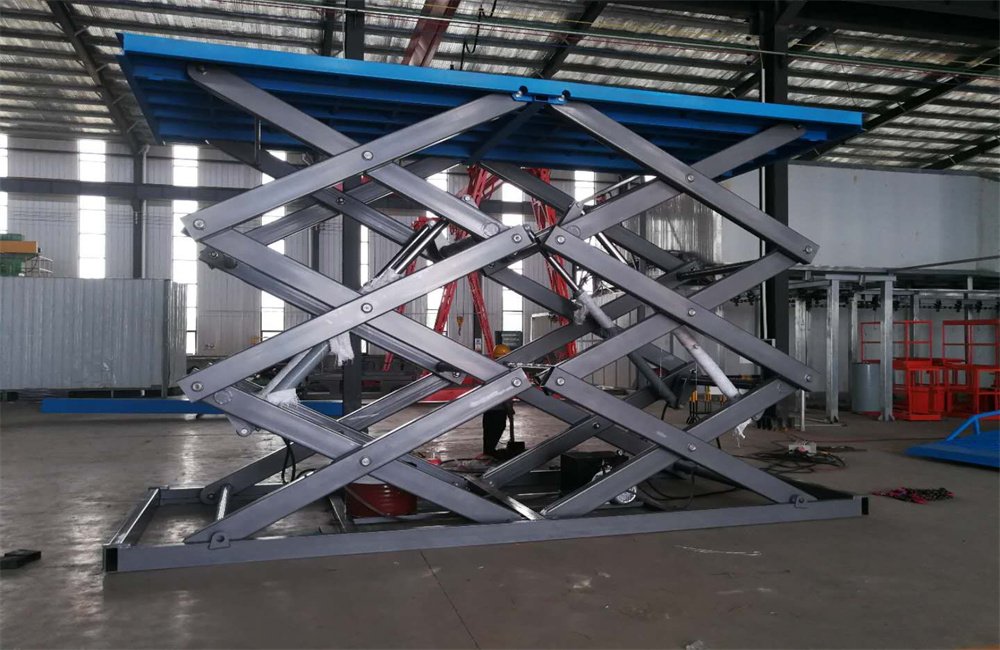

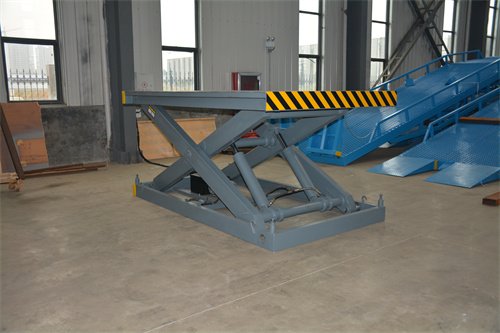

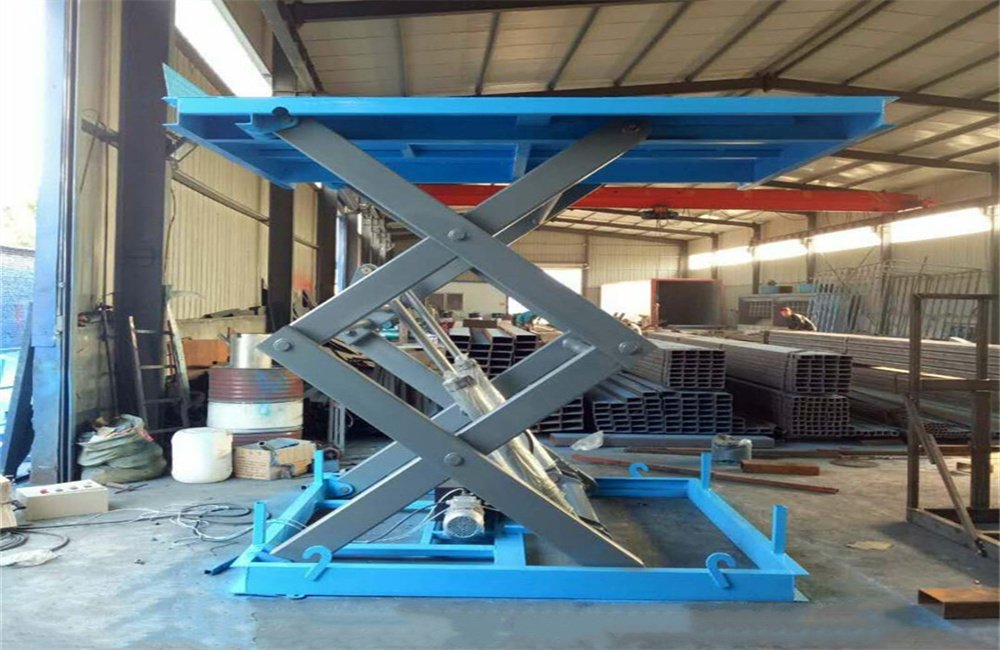

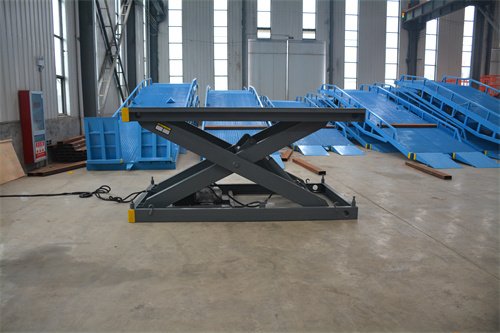

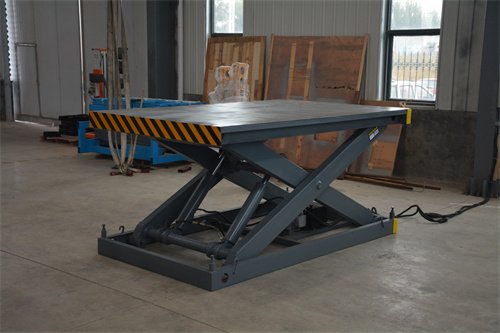

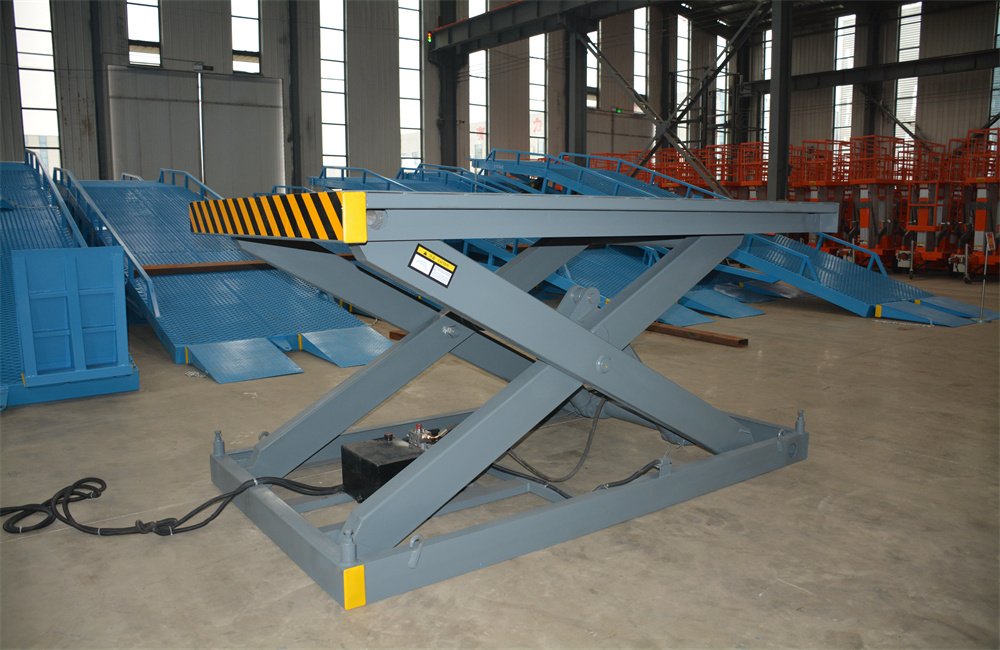

Stationary Scissor Lift

Four major safety systems: 1. Overload protection device prevents the unit from exceeding rated load; 2. Hydraulic hose burst valve guards against accidental loss of control; 3. Emergency lowering device brings the platform down safely after power loss; 4. Optional door-window safety locks lock the upper and lower-level doors during operation.

Description

Four Major Safety Systems

1. Overload protection device prevents the unit from exceeding rated load.

2. Hydraulic hose burst valve guards against accidental loss of control.

3. Emergency lowering device brings the platform down to a safe height after power loss.

4. Optional door-window safety locks: when safety doors are installed, the upper- and lower-level doors can be locked during operation.

Key Specifications

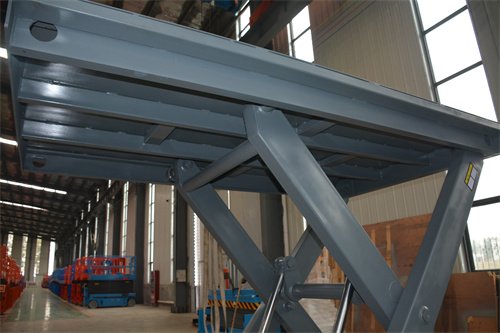

Scissor main structure: 120*60*4 mm rectangular tube (Q235)
Rated load: customizable to customer requirements
Net lifting height: customizable to customer requirements
Folded height: refer to drawings (machine height)
Finish: electrostatic powder coating
Working pressure: ≤16 MPa
Motor power: 1.6 kW (high-power)
DC lifting: 24V
Platform deck: 3 mm anti-slip checker plate

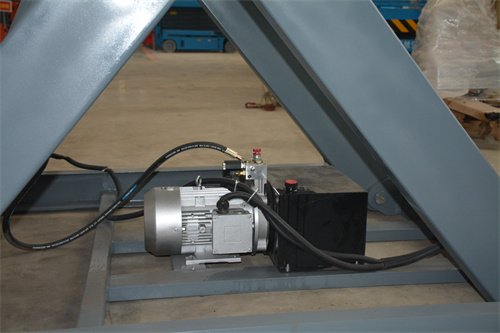

Pump station: Lisheng hydraulic power unit
Electrics: Delixi components
Pin shafts: ¢45 quenched and tempered
Seals: Japanese Wal brand (imported)
Hydraulic hose: high-pressure double-layer steel-mesh rubber hose by Shenyang Rubber Factory No. 4
Hydraulic oil: Great Wall N32 anti-wear hydraulic oil
Control: electric push-button control (36V safe voltage)

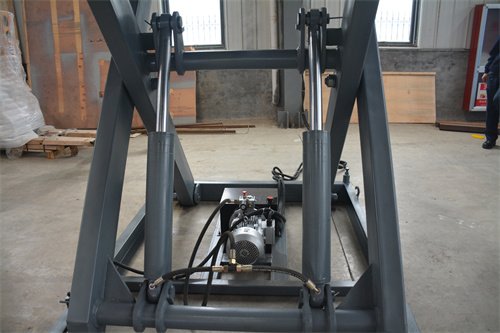

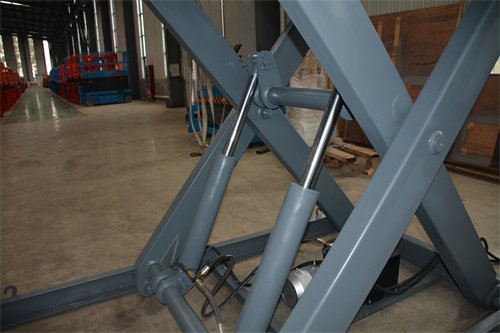

Hydraulic cylinder: precision-ground cylinder by Hengyu Hydraulic Machinery

Specifications are for reference only; please refer to the actual unit.
