Stationary Dock Leveler

Easy operation and reliable performance: the dock leveler uses full hydraulic drive; the lip plate and platform are connected by a full-length shaft for high strength and reliability; the integrated modular hydraulic station offers excellent sealing and a long service life. Anti-slip checker-plate deck. High-power motor for stable operation. Sealed hydraulic cylinder prevents oil leakage.

Description

Product Advantages

Easy Operation, Reliable Performance

The dock leveler uses full hydraulic drive for easy and reliable operation. The lip plate and platform are connected via a full-length shaft for high strength and reliability.

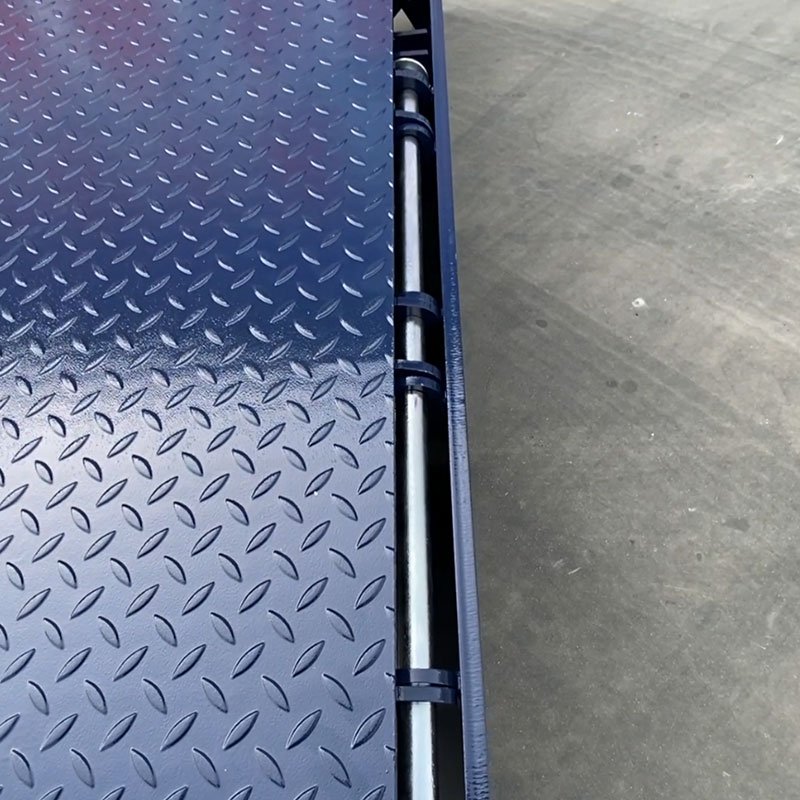

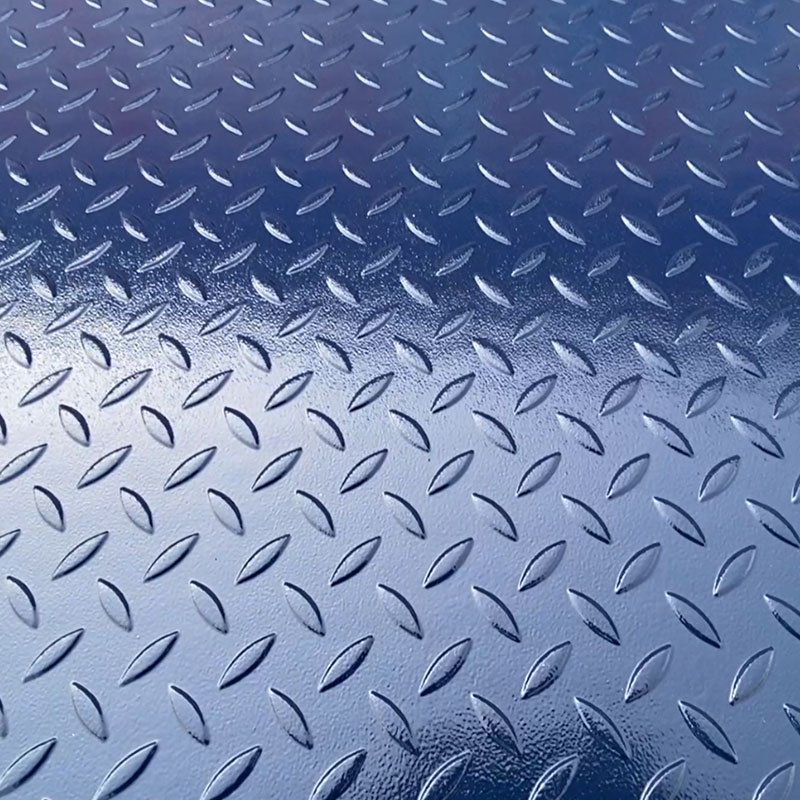

Anti-Slip Checker-Plate Deck

The deck uses checker-steel plate for stable, anti-slip performance.

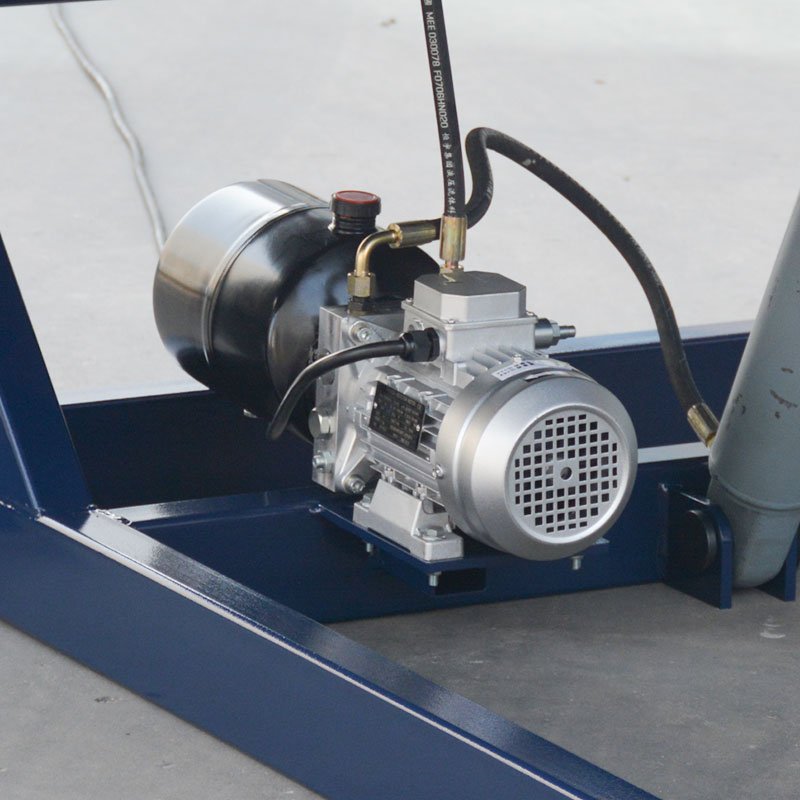

Stable High-Power Motor

The high-power motor delivers stable, reliable operation.

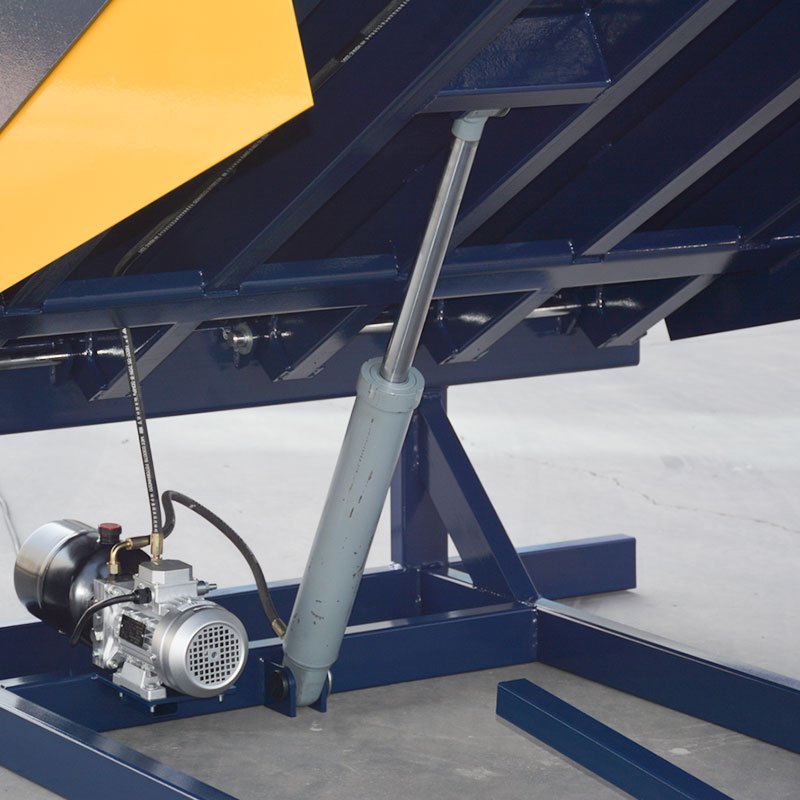

Sealed Hydraulic Cylinder Prevents Leakage

Sealed hydraulic cylinder design prevents oil leakage and ensures safe operation.

Specifications

Model	Platform (mm)	Lip Plate (mm)	Up (mm)	Down (mm)	Power (kW)	Pit Dimensions (mm)
DCQG6-0.6	2000 x 2500	400	300	200	0.75	2080 x 2540 x 600
DCQG8-0.6	2000 x 2500	400	300	200	0.75	2080 x 2540 x 600
DCQG10-0.6	2000 x 2500	400	300	200	0.75	2080 x 2540 x 600
