Mobile Dock Ramp

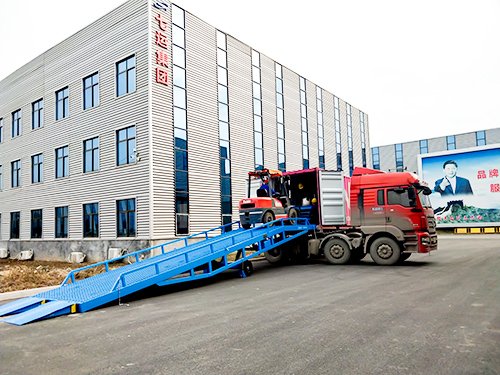

The mobile dock ramp uses solid tires with wheel chocks. Used together with a forklift, it serves as a loading aid that adjusts to truck-bed height, allowing the forklift to drive directly into the truck for fast batch loading and unloading - all by a single operator.

Description

Product Advantages

The mobile dock ramp features solid tires and wheel chocks. It works in tandem with a forklift as an unloading aid: heights adjust to the truck bed so the forklift can drive directly into the truck for fast batch loading and unloading, all by a single operator.

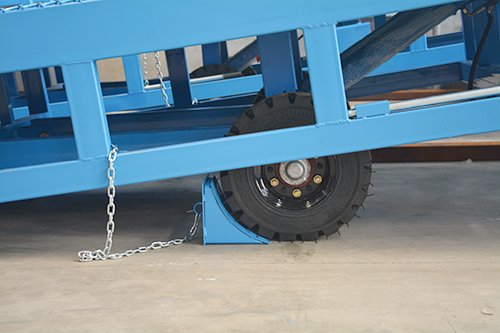

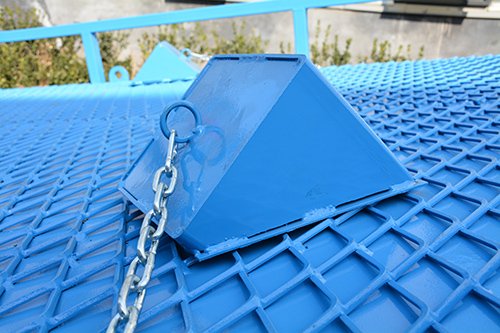

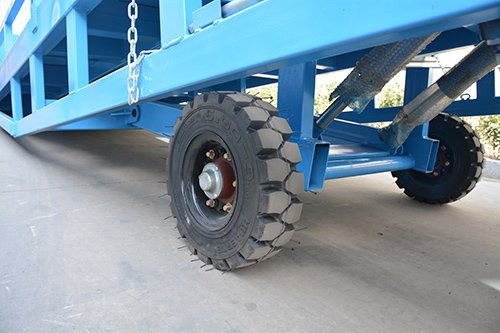

Stable Solid Tires + Wheel Chocks

Solid tires with strong load capacity eliminate tire blowouts. Wheel chocks ensure stability during loading and unloading.

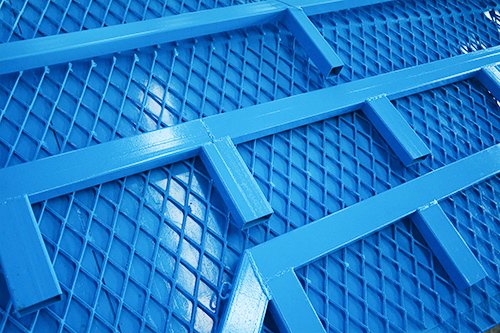

Anti-Slip Diamond-Mesh Deck

Tough, hard-wearing surface suits any floor with low rolling resistance and no surface damage.

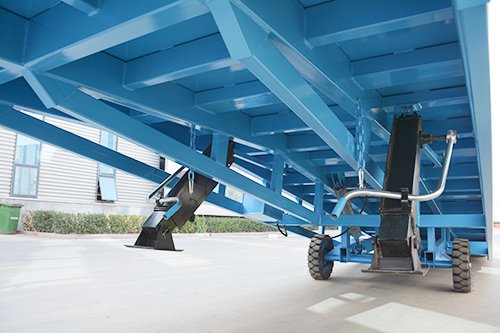

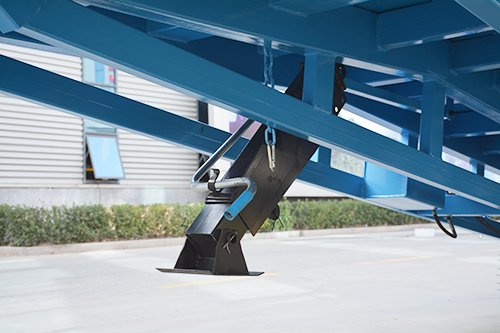

Reliable Joint-Venture Hydraulic Cylinders

Premium joint-venture hydraulic cylinders with high output, low failure rate, easy maintenance. Optional explosion-proof valves for special-environment use.

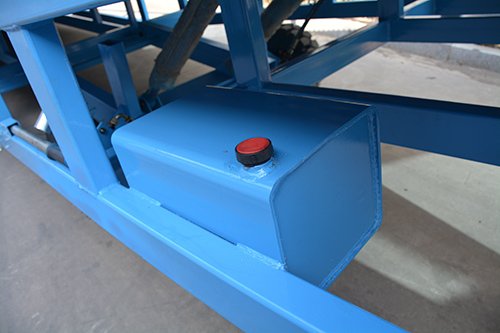

Convenient Hand-Pump

Hand-pump for simple manual hydraulic raising with high load capacity.

Easy-To-Operate Folding Tail Plate

The split, foldable tail plate is simple, lightweight and easy to operate.

Specifications

Model	Overall Dim. (mm)	Main Beam (mm)	Solid Tire	Cylinder x2 (mm)	Lip Plate
8 ton	11000 x 2020 x 1100	160 x 80 x 4	600-9	80 x 50	14
10 ton	11000 x 2020 x 1100	180 x 80 x 4	600-9	80 x 50	16
12 ton	11000 x 2020 x 1100	180 x 80 x 4	600-9	80 x 50	16
