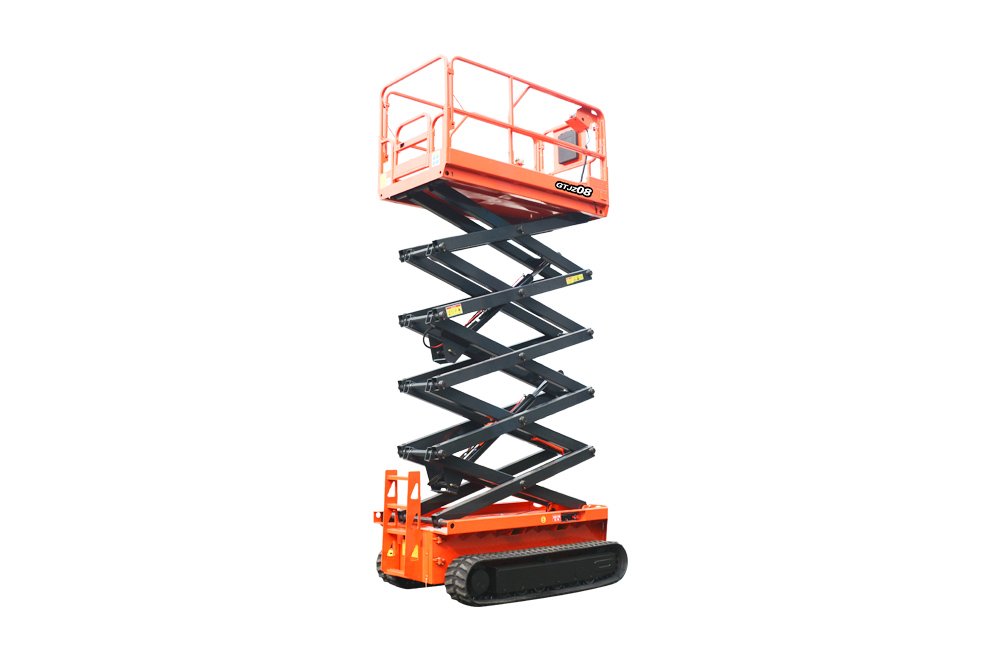

Crawler Scissor Lift Platform

Crawler self-propelled scissor lift platform with auto-drive function: a single operator at the platform can complete raising, lowering, forward, reverse and steering. Compact, agile and easy to operate, with high load capacity, smooth lifting, and reliable safety features. Quickly deployable foldout platform, foldable rails, 25% gradeability, drawer-style chassis for easy maintenance, and self-displaying fault codes.

Description

Product Advantages

Designed for large venues and complex factory floors, this lift handles indoor and outdoor aerial work with a safe load of 230-320 kg. The scissor frame uses Q345 high-strength manganese steel.

Lifting heights of 4-10 m optional, rated load 230-550 kg. Self-driving operation lets a single operator complete raising, lowering, forward, reverse and steering at the platform.

Quick-deploy foot extension platform
Foldable guardrails reduce overall size
25% gradeability handles inclines smoothly

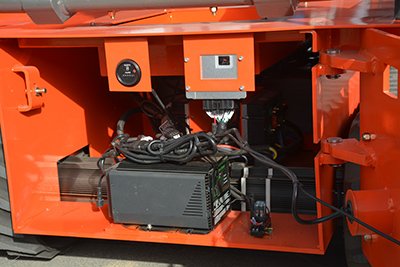

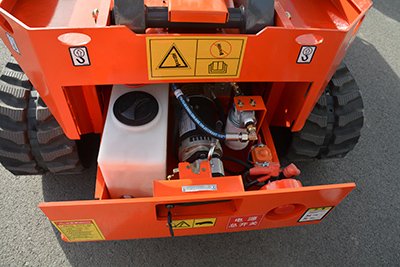

Drawer-style chassis for easy maintenance

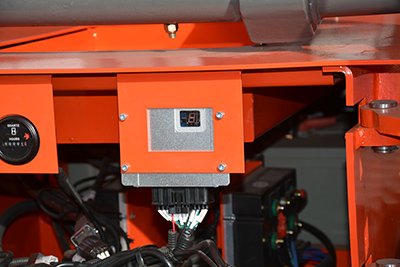

Self-displaying fault codes for fast diagnosis

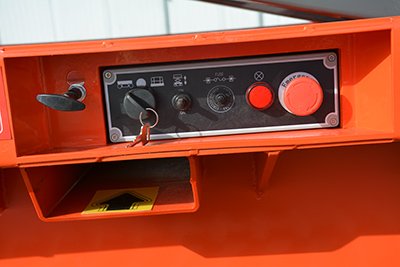

Telescopic work platform / cylinder burst protection / automatic brake / emergency lowering / charge protection / digital self-check / one-touch hydraulic outrigger leveling

Specifications

Model	Overall Dim. (L x W x H) (mm)	Platform L x W (mm)	Platform Height (m)	Extension (mm)	Load (kg)	Weight (kg)
GTJZ04	1515 x 1097 x 1660	1300 x 740	4	600	240	995
GTJZ06	1915 x 1210 x 2140	1670 x 760	6	900	240	1855
GTJZ08	2705 x 1325 x 2500	2263 x 1129	8	900	320	3000

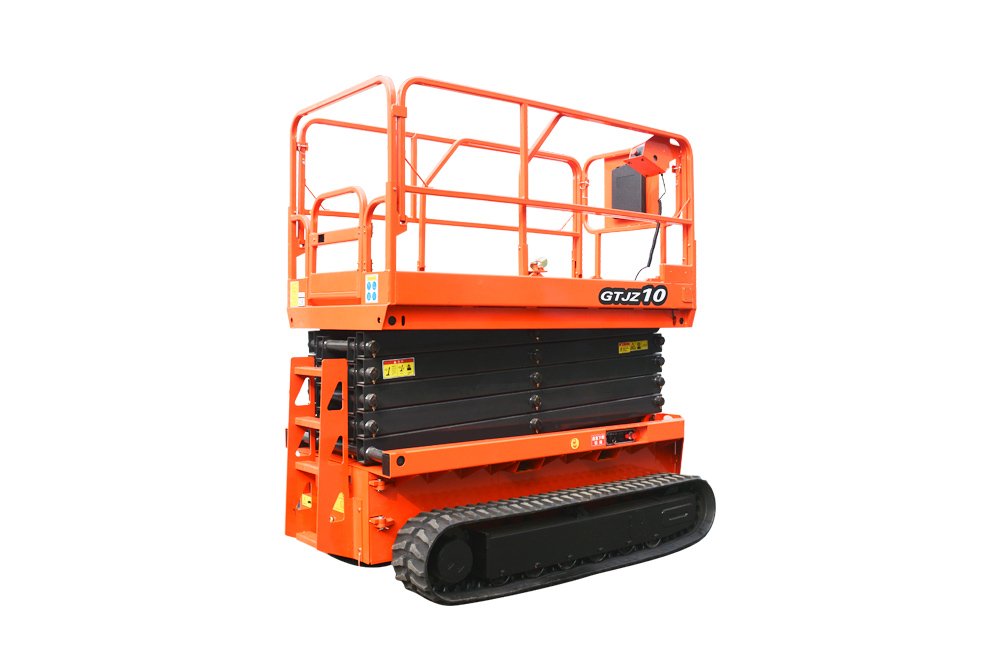

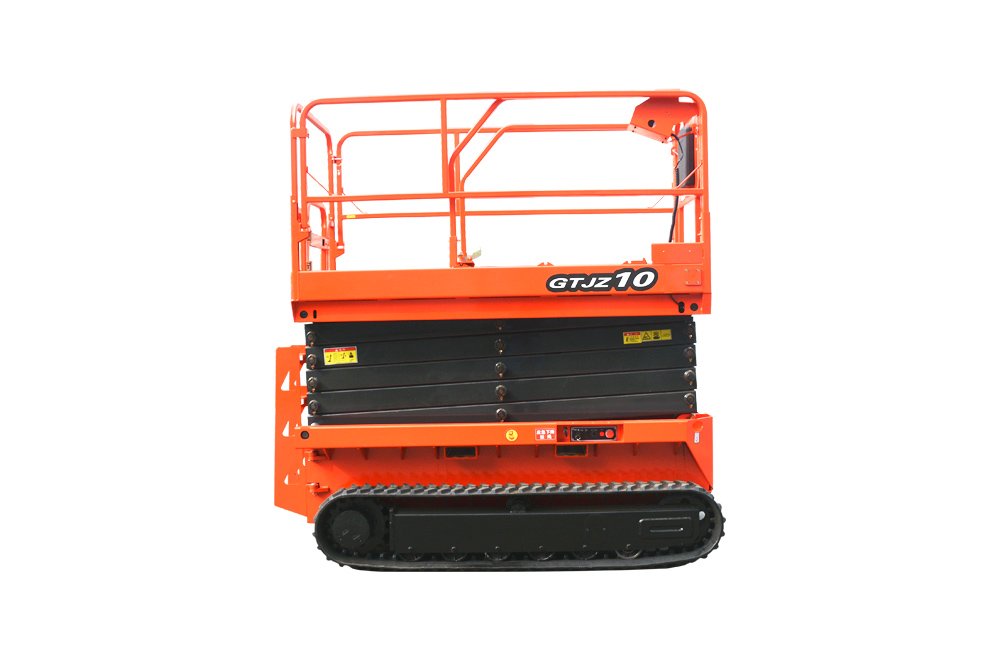

GTJZ10	2515 x 1390 x 2041	2271 x 1110	10	900	300	3200
GTJZ12 (Slide-out Outrigger)	2855 x 1390 x 2172	2271 x 1110	12	900	300	3250
GTJZ12 (One-Touch Leveling)	2731 x 1661 x 2694	2271 x 1110 (electrocoat)	12	900	300	3670
