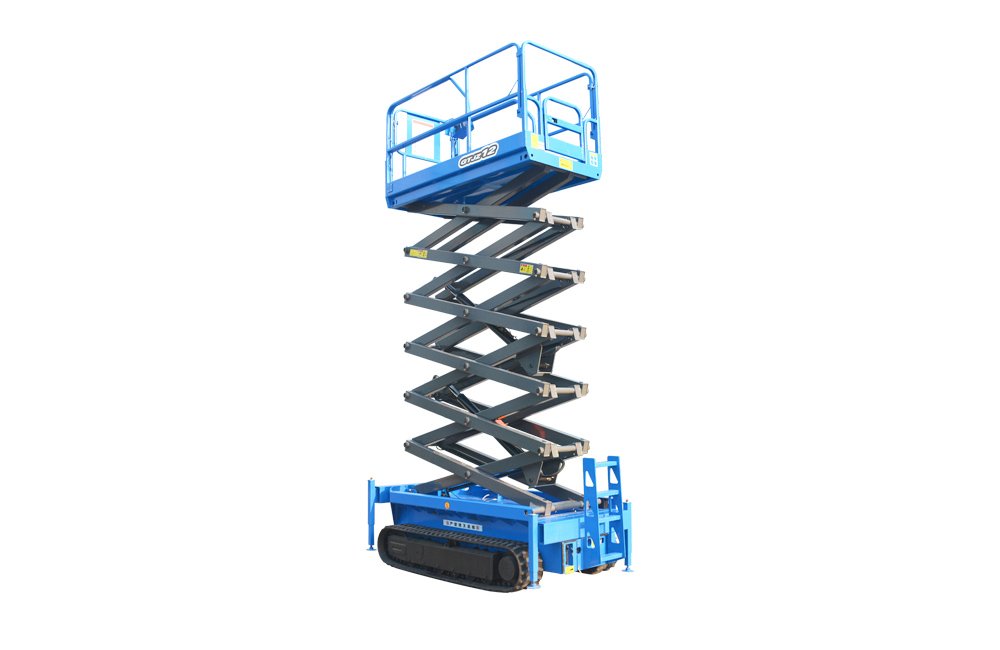

12m Blue Slide-Out Outrigger Crawler Lift Platform
Crawler self-propelled scissor lift platform with auto-drive: a single operator can complete raising, lowering, forward, reverse and steering at the platform. Good aesthetics, agile, easy to operate, high load capacity, smooth lifting, and reliable safety.
- Description
Product Advantages
Optional lifting height 4-14 m, rated load 230-320 kg. Self-driving design lets a single operator complete raising, lowering, forward, reverse and steering at the platform.
- Quick-deploy foot extension platform
- Foldable guardrails reduce overall size
- 25% gradeability handles inclines smoothly
- Drawer-style chassis for easy maintenance
- Self-displaying fault codes for fast diagnosis
Specifications
| Model | Overall Dim. (L x W x H) (mm) | Platform L x W (mm) | Platform Height (m) | Extension (mm) | Load (kg) | Weight (kg) |
|---|---|---|---|---|---|---|
| GTJZ04 | 1515 x 1097 x 1660 | 1300 x 740 | 4 | 600 | 240 | 995 |
| GTJZ06 | 1915 x 1210 x 2140 | 1670 x 760 | 6 | 900 | 240 | 1855 |
| GTJZ08 | 2705 x 1325 x 2500 | 2263 x 1129 | 8 | 900 | 320 | 3000 |
| GTJZ10 | 2515 x 1390 x 2041 | 2271 x 1110 | 10 | 900 | 300 | 3200 |
| GTJZ12 (Slide-out Outrigger) | 2855 x 1390 x 2172 | 2271 x 1110 | 12 | 900 | 300 | 3250 |
| GTJZ12 (One-Touch Leveling) | 2731 x 1661 x 2694 | 2271 x 1110 (electrocoat) | 12 | 900 | 300 | 3670 |
Specifications are for reference only; please refer to the actual unit.

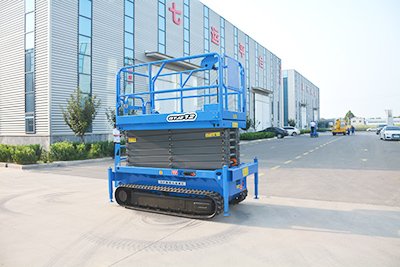

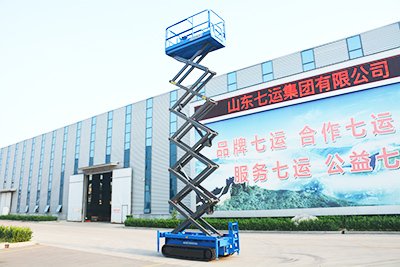

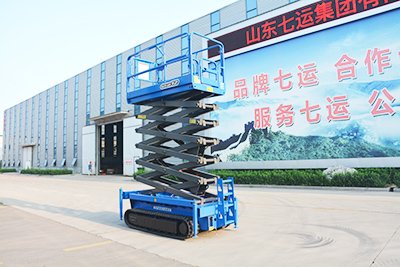

Product Display
