Mobile Loading Dock
Mobile loading dock certified to ISO 9001 quality system and recognized as a high-tech enterprise. Carefully selected components include 7 inch wheels with 6 inch swivel casters, imported sealed oil cylinders, remote-control lifting and reinforced heavy-duty chains for stable, reliable performance.
- Description
Product Introduction
The mobile loading dock is certified to ISO 9001 and recognized as a high-tech enterprise.
Carefully Selected Materials
1. Swivel Casters
Our mobile loading dock uses 7 inch driving wheels combined with 6 inch swivel casters for agile, easy movement.

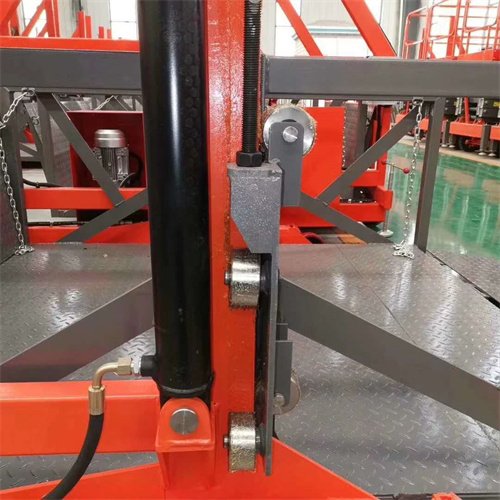

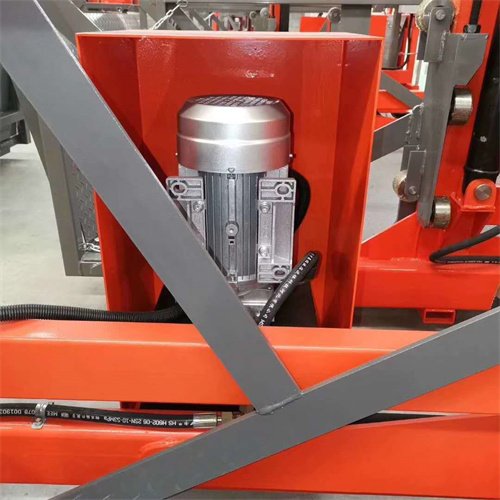

2. Hydraulic Cylinder
The pump on every mobile loading dock uses imported seals and an integrated leak-proof design, delivering longer service life with less effort.

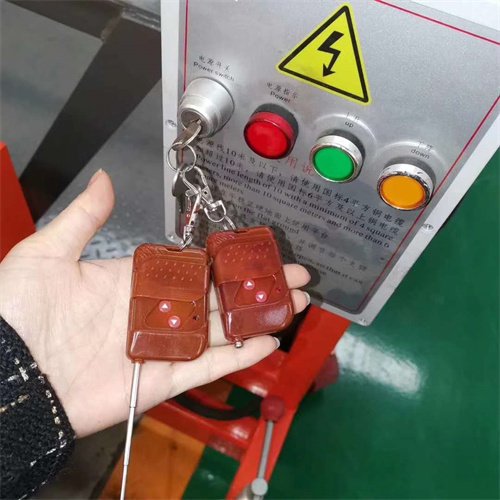

3. Remote-Control Lifting
The lifting controller is remote-operable, with high-quality components for safety, durability and easy operation.

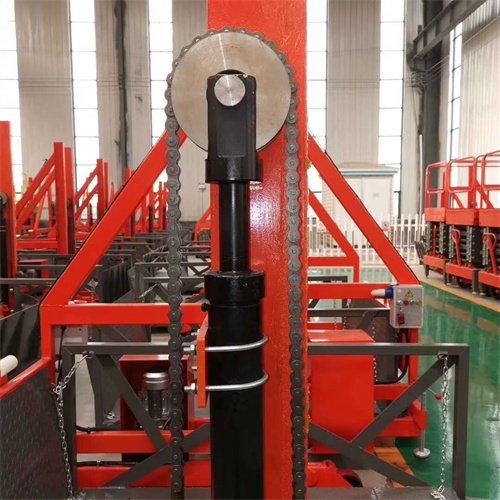

4. Heavy-Duty Chains
The reinforced heavy-duty chains deliver greater load capacity and ensure safe, smooth operation of the platform.
Specifications
| Model | Platform Size (mm) | Capacity (kg) | Lifting Height (m) | Overall Dim. (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ZXPT16-2 | 1700 x 1675 x 800 | 2000 | 1.6 | 1855 x 2380 x 2570 | 790 |
| ZXPT16-2 | 1700 x 1675 x 800 | 2000 | 1.6 | 2155 x 2380 x 2570 | 850 |
Specifications are for reference only; please refer to the actual unit.

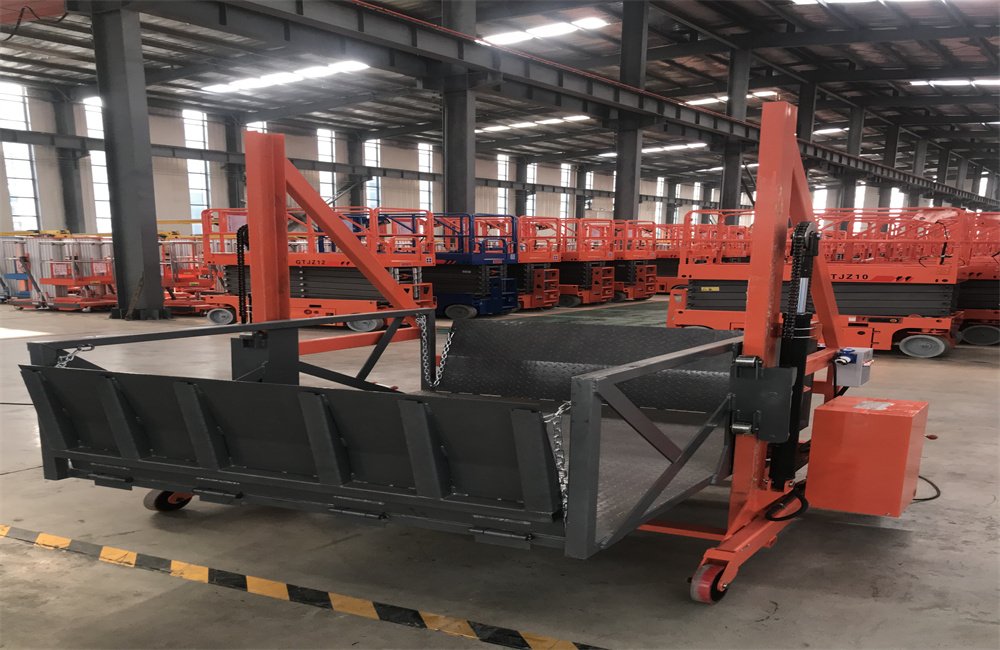

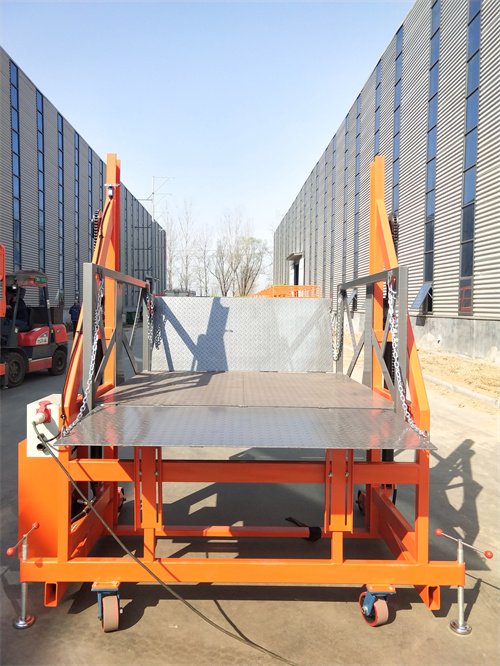

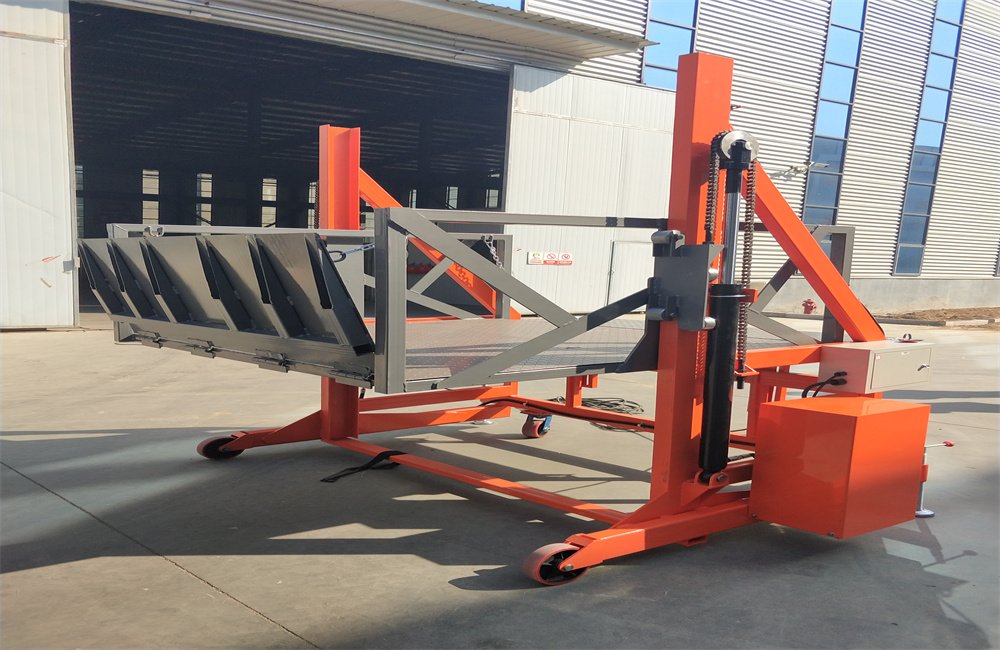

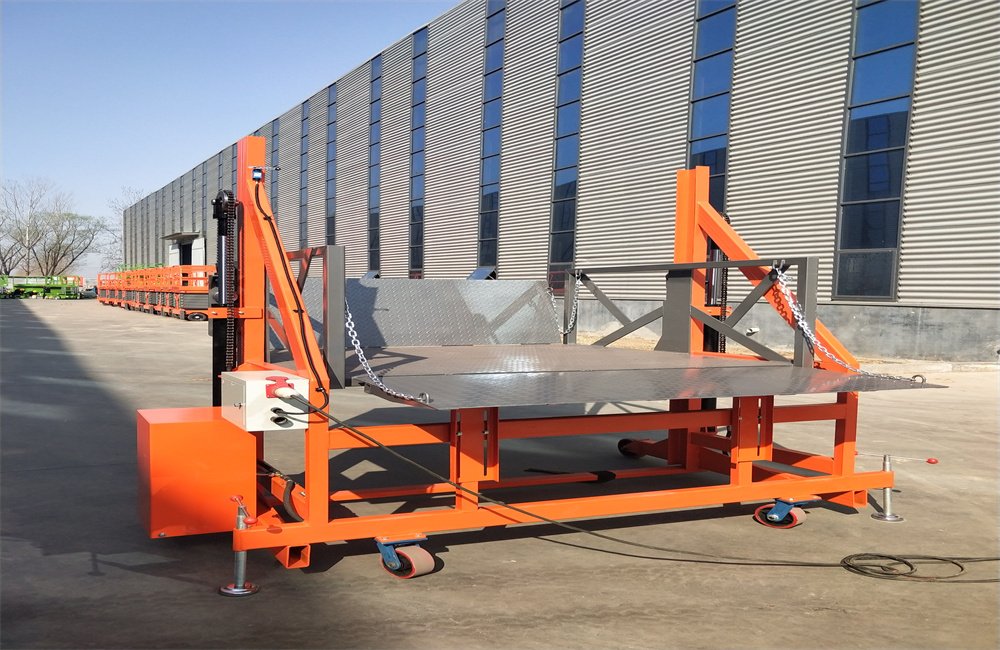

Product Display
